-40AN X-Series Clamp Assembly - 2.5 Inch
Hurry up! Only 10 item(s) items left in stock
Couldn't load pickup availability
Description
OVERVIEW
Quickly and easily connect and disconnect hard lines while allowing flexibility and movement for normal operation. These lightweight, tool free, clamps are strong and ensure charge pipes do not blow off during use. The assemblies use aerospace grade materials and tolerances throughout for unparalleled performance, fit, and function. The clasp mechanism offers an audible and satisfying click when shut and has a positive connection to not back off during operation. The clamps are extremely low profile to improve space utilization.
The X-Series clamps are compatible with all Wiggins style units as the manufacturing specifications are the same. They are not interchangeable with Vibrant style clamps.
Available in 3 different bright dip colors that are certain to make the engine bay pop with the performance to back it up.
WHAT IS INCLUDED

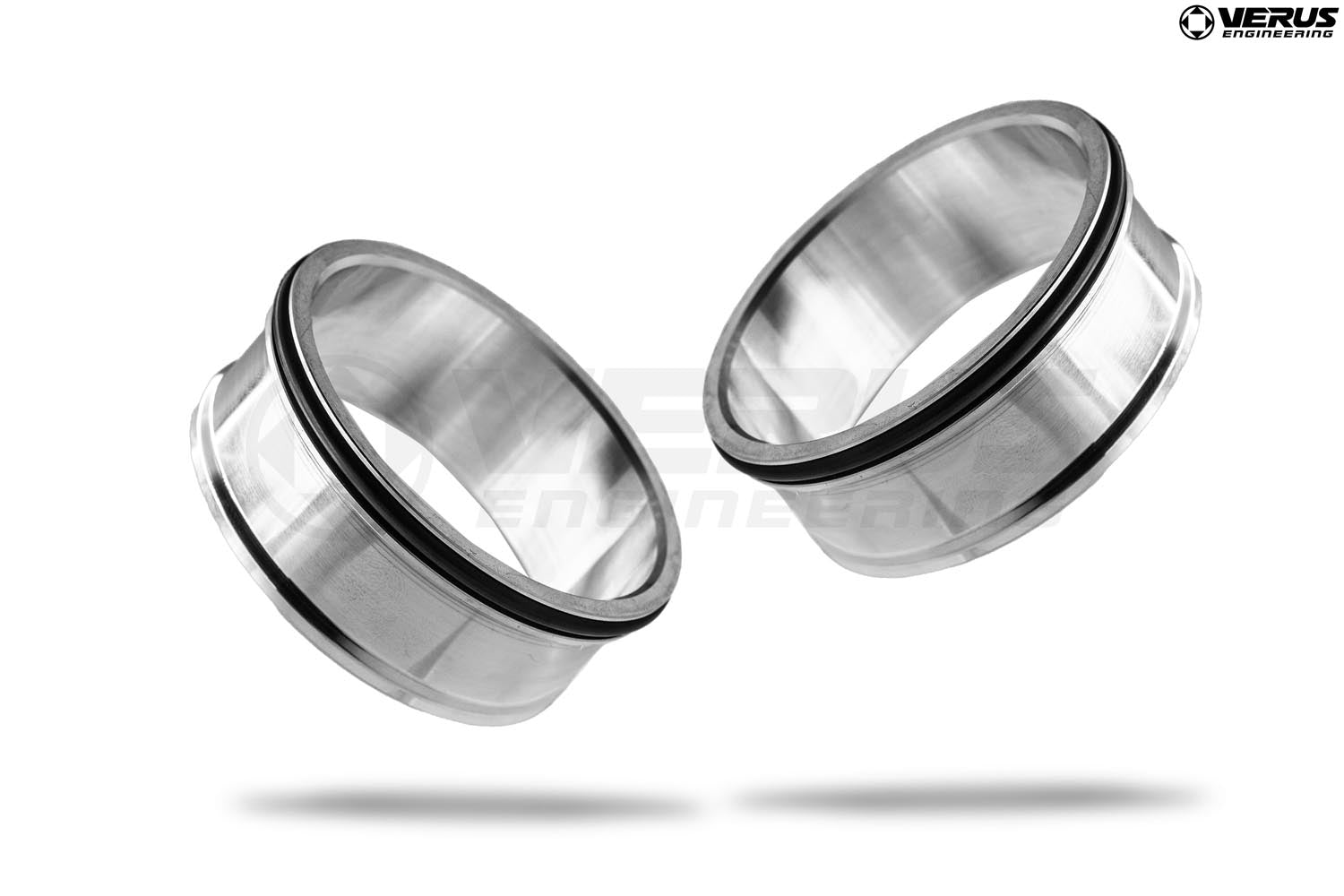

- (2) Weld Ferrules
- (1) X-Series Clamp
- (1) X-Series Ferrule Sleeve
- (2) O-Ring
- (1) Grease Packet
PART NUMBER
X-A0040A-B-BLK
X-A0040A-B-BLU
X-A0040A-B-RED
Features:
-Aerospace Coupler Tolerances
-No Hand Tools Needed for R&R
-Aerospace Grade Materials
-Offer Flexibility and Movement Between Couplers
-Reliable Connection and Disconnection of Rigid Tubing
Features:
-Aerospace Coupler Tolerances
-No Hand Tools Needed for R&R
-Aerospace Grade Materials
-Offer Flexibility and Movement Between Couplers
-Reliable Connection and Disconnection of Rigid Tubing

Specifications:
-6061-T6 Aluminum, Anodized and Laser Engraved Clamp
-6061-T6 Aluminum, Anodized Clamp Sleeve
-6061-T6 Aluminum, Anodized Clamp Hinge
-6061-T6 Aluminum Weld On Ferrules
-303 Stainless Clasp Mechanism
-High Strength Steel Spring
Specifications:
-6061-T6 Aluminum, Anodized and Laser Engraved Clamp
-6061-T6 Aluminum, Anodized Clamp Sleeve
-6061-T6 Aluminum, Anodized Clamp Hinge
-6061-T6 Aluminum Weld On Ferrules
-303 Stainless Clasp Mechanism
-High Strength Steel Spring
