6 Port Turbo Heat Shield Kit - BMW (G-Series, B58 Engine)
Hurry up! Only 10 item(s) items left in stock
Couldn't load pickup availability
Description
OVERVIEW

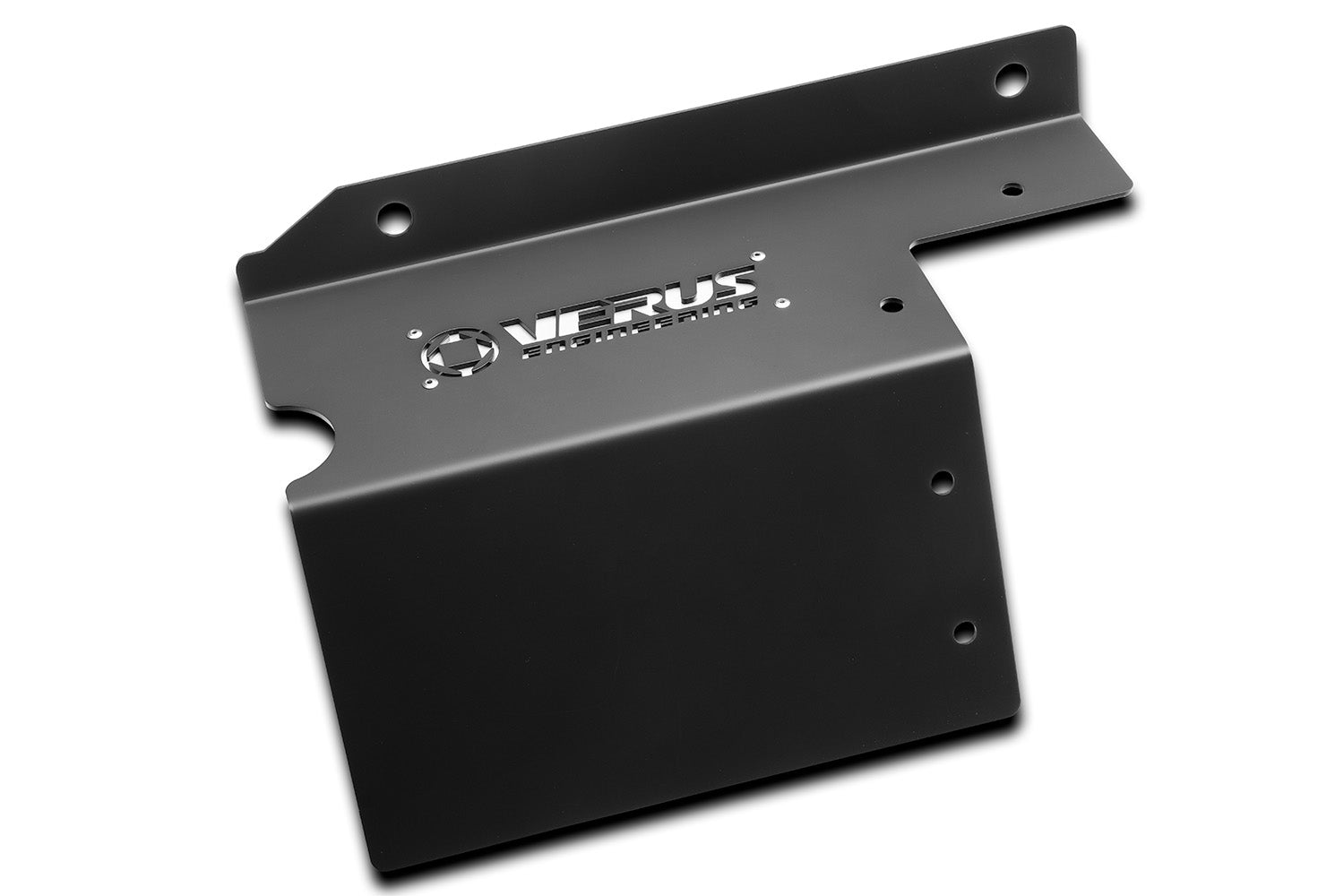

The Verus Engineering 6 Port Turbo Heat Shield is perfect for keeping heat around the turbo area and freeing up engine bay space. If running an aftermarket intake; it is a great addition to reduce heat soak as well. Removing the factory resonator and heat shield greatly improves engine bay aesthetics and available room.
The heatshield is produced from 2.0mm thick stainless steel sheet metal which is CNC laser cut, CNC bent, and then finished in high-temp Cerakote. The heat shield was designed off scan data obtained internally for an OE-like fit.
Utilizing our unit, you can expect a better-looking engine bay, better thermal properties, and less heat soak.
Current known fitment: (G20) M340i/M340ix, (G42) M240i, (G22/G23) M440, (G01) X3 w/B58,
and (G29) Z4.
WHAT IS INCLUDED
- Cerakote Coated Stainless Heat Shield Main Cover
- Cerakote Coated Stainless Heat Shield Side Cover
- Hardware Kit, Includes All Hardware Necessary for Install
PART NUMBER
A0411A-BLK
A0411A-SLV
INSTALL AND DATA
INSTALL MANUAL
Features:
- Excellent Coverage of Turbine and Manifold Area
- Improved Engine Bay Aesthetics
- Thick 2.0mm Stainless Construction
- Improved Heat Rejection Characteristics
- Simple Bolt-On Install
Features:
- Excellent Coverage of Turbine and Manifold Area
- Improved Engine Bay Aesthetics
- Thick 2.0mm Stainless Construction
- Improved Heat Rejection Characteristics
- Simple Bolt-On Install
Specifications:
- 2.0mm Thick 304 Stainless Sheet
- CNC Laser Cut
- CNC Press Break Formed
- Cerakote High-Temp Coated
- Stainless Hardware
Specifications:
- 2.0mm Thick 304 Stainless Sheet
- CNC Laser Cut
- CNC Press Break Formed
- Cerakote High-Temp Coated
- Stainless Hardware
