ARB Bumper/Fitting Kit Bundle 3452040
Couldn't load pickup availability
Description

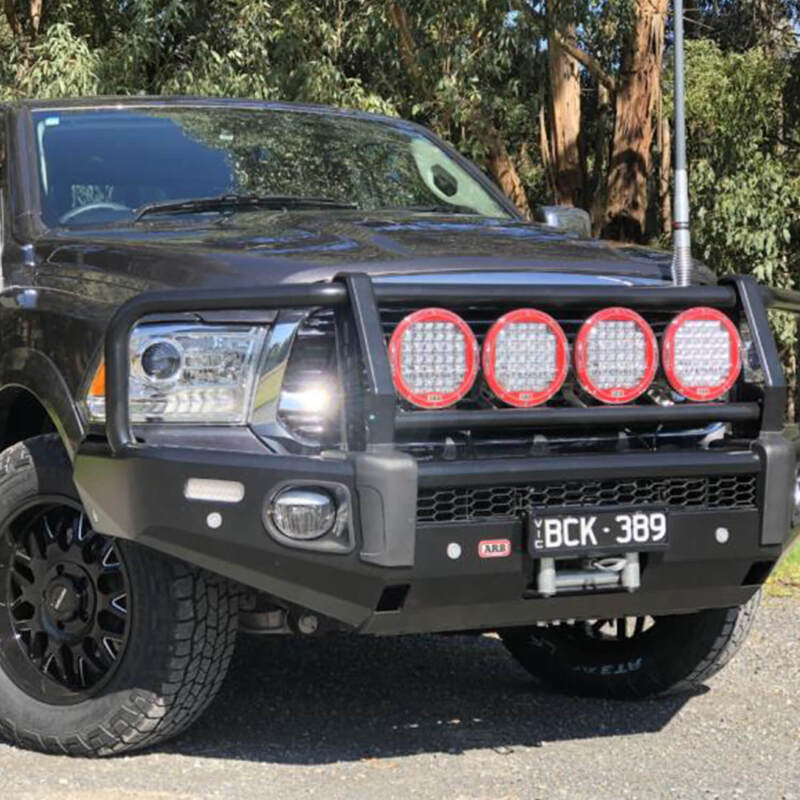

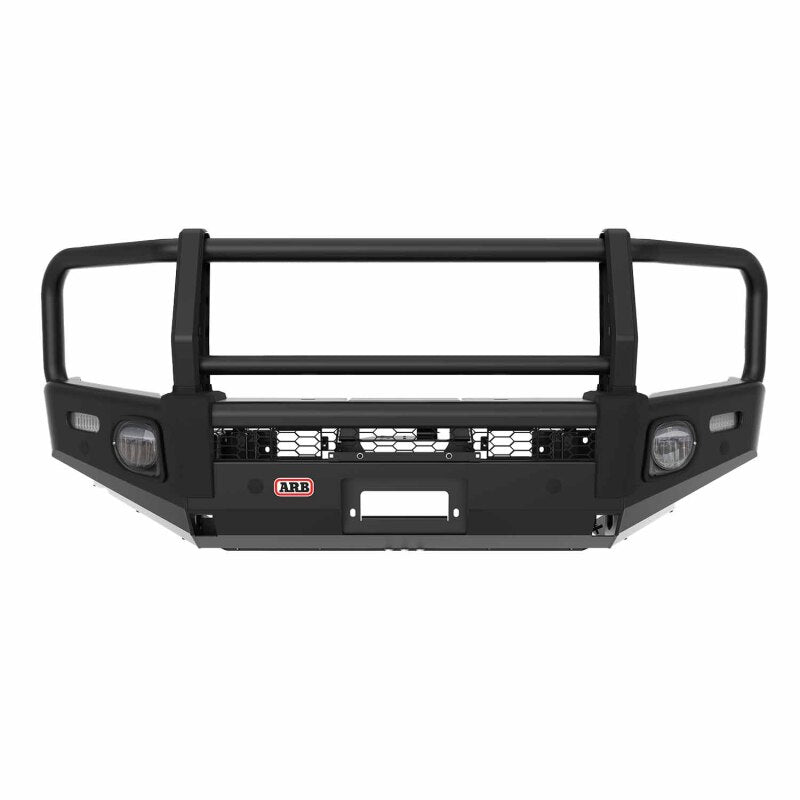

ARB's engineers have designed and developed a Summit Winch Bumper to suit the Dodge Ram 1500. Due to the size of the vehicle and its ability to tow up to 4.5 Tons (subject to vehicle specification) the Ram Summit Bumper has been designed to suit 12,000lb winches. To accommodate the larger winch sizes the lower pan of the Ram 1500 bar is a different profile to other Summit Bumpers and features additional bracing to achieve the higher winch loads. Testing has been conducted via FEA simulations, testing with ARB's 30T press and fitted bar, and winch testing with ARB's load cell to ensure that the bar assembly, chassis mounts and chassis perform as expected under winch load conditions.
Installation InstructionsWarranty
- Hawse fairlead spacer kit part 3500600 required when fitting a hawse fairlead
- Compatible with most electic low mount winches, up to 12,000 lb capacity
- Registered Design Of Styling And Design Components
- Durable Steel Construction For Maximum Protection

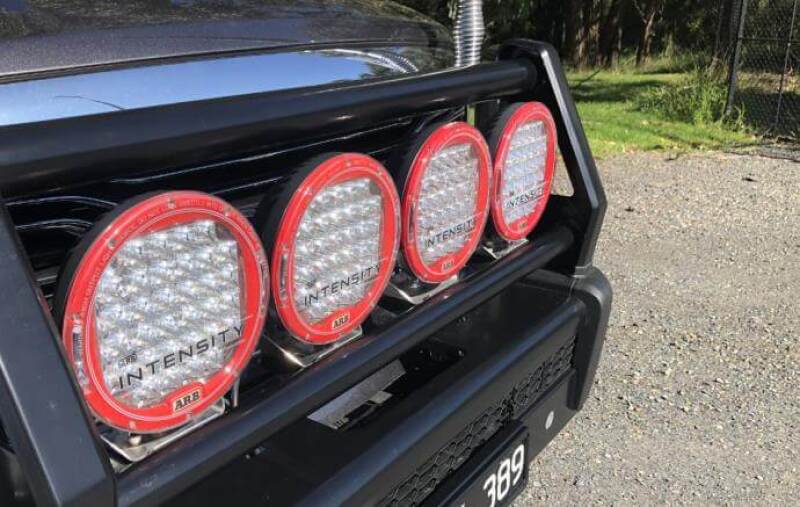

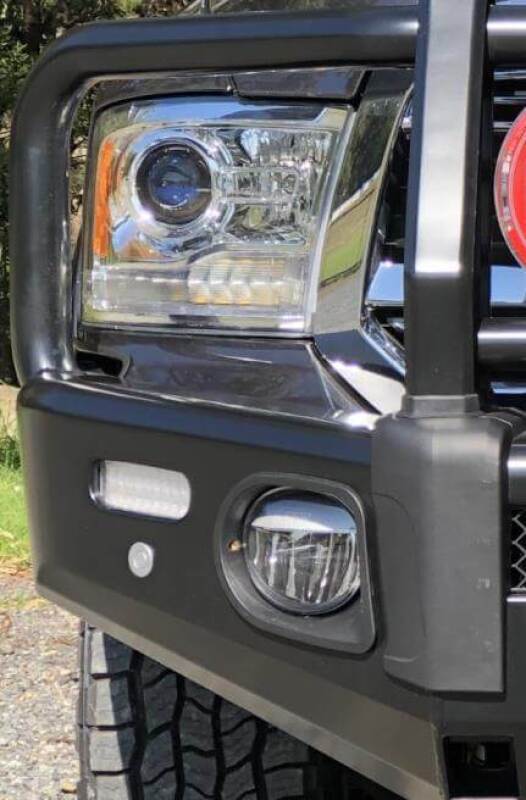

- Provision For Optional ARB Fog Lights
- Twin ARB Jack Or Hi-Lift Jack Points
- Finished In Matt Black Powder Coat
- Provision For OE Parking Sensors
- Provision for Driving Lights
- Press-Formed Cover Straps
Fitment
