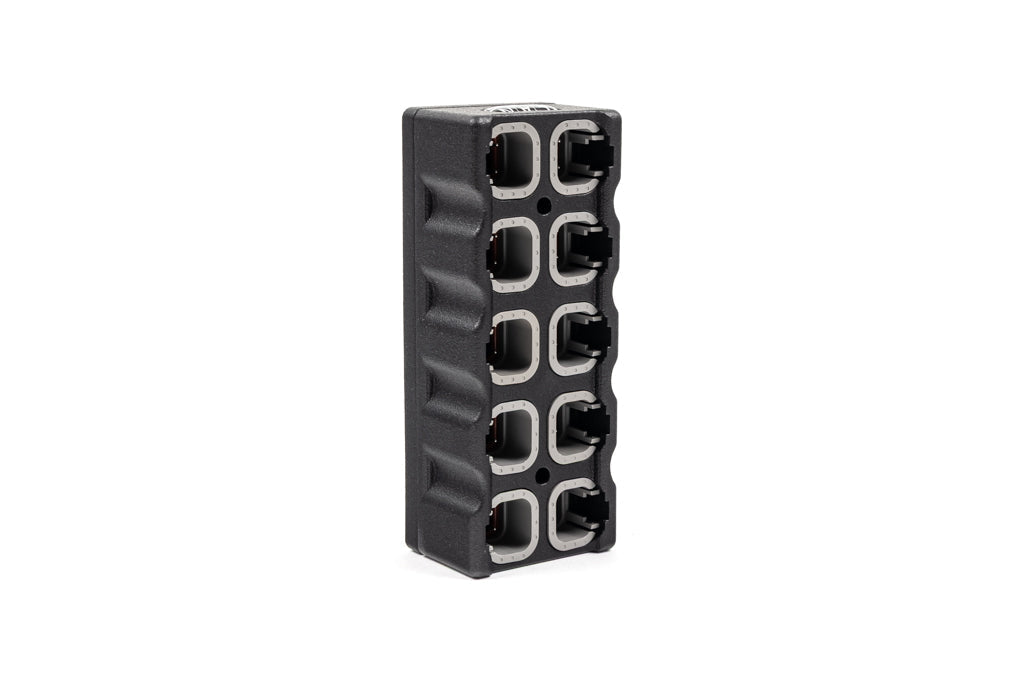

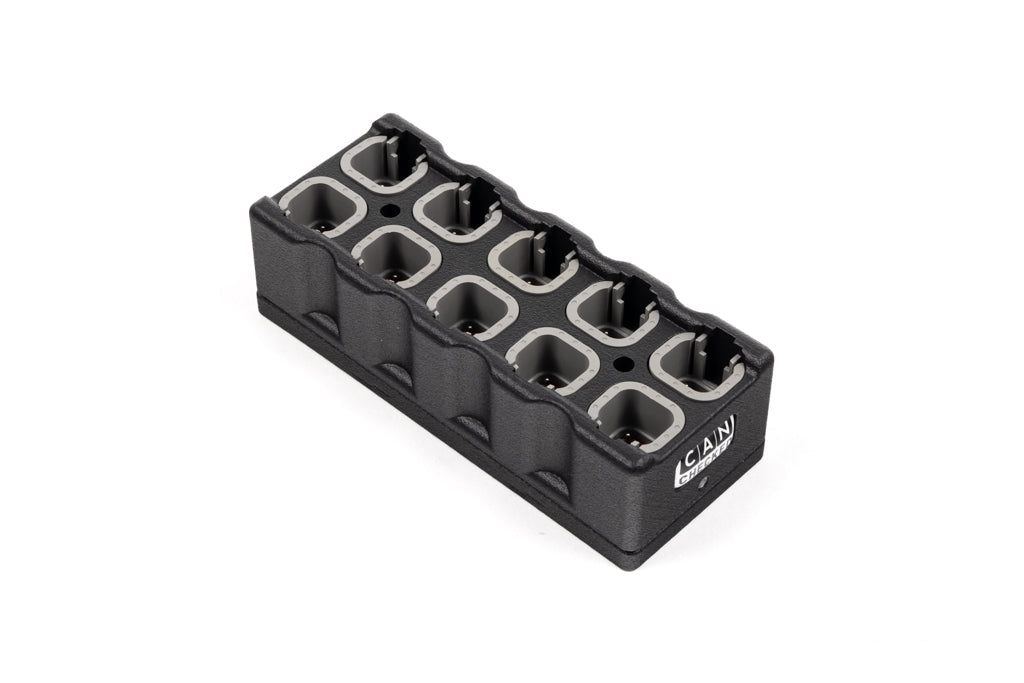

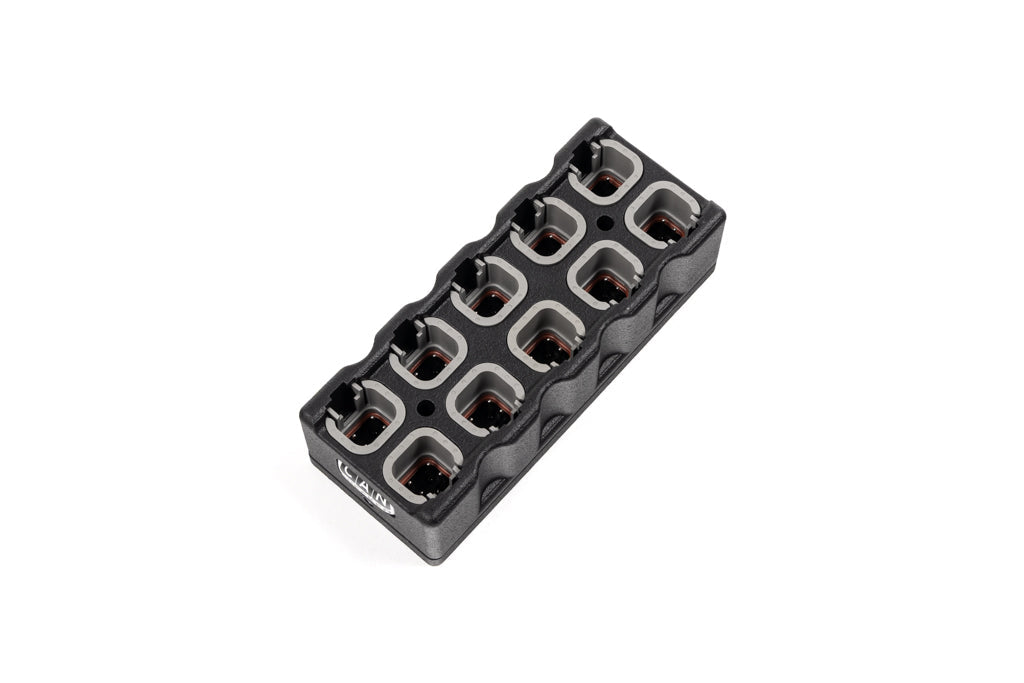

CANchecked CBD10 CAN Bus Distribution
Hurry up! Only 2 item(s) items left in stock
Couldn't load pickup availability
Description
The CANchecked CBD10 CAN Bus Distribution Hub simplifies the installation and expansion of CAN bus-based electronics by providing a centralized connection point for multiple devices. Designed for motorsport, performance, and custom vehicle applications, the CBD10 eliminates the complexity of routing, terminating, and distributing CAN bus connections throughout the vehicle while maintaining a clean and organized wiring solution.
Featuring ten integrated ports, the CBD10 distributes CAN High, CAN Low, 12V power, and Ground through compact DTM-style connections. Whether you're integrating multiple CANchecked devices, aftermarket ECUs, data displays, loggers, sensors, or diagnostic equipment, the CBD10 provides a convenient hub that streamlines installation and future system expansion.
The compact enclosure measures just 120 x 48 x 34 mm, allowing it to be mounted discreetly in a variety of locations. Internal jumper settings provide flexibility for configuring separate CAN networks, linking multiple CAN buses together, and enabling or disabling bus termination resistors as required for your application. This versatility makes the CBD10 suitable for everything from simple display installations to complex multi-device CAN bus systems.
For installations requiring multiple CAN bus devices, the CBD10 creates a professional-grade wiring infrastructure that reduces clutter, simplifies troubleshooting, and improves overall system reliability.

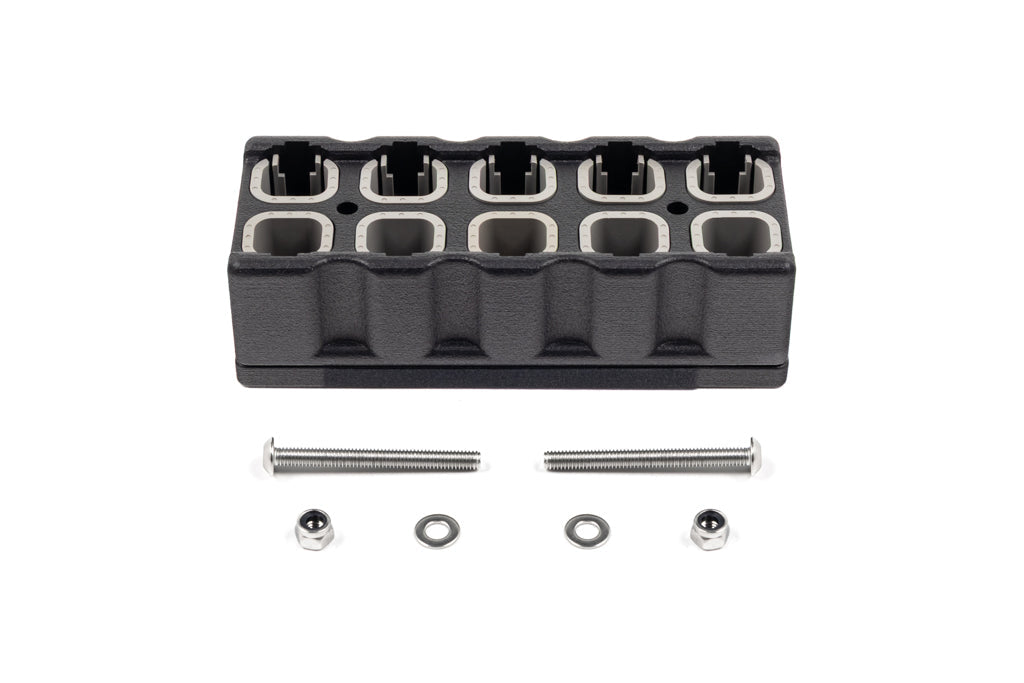

What's Included
- CANchecked CBD10 CAN Bus Distribution Hub
- Mounting hardware
Key Features
- Ten integrated CAN bus connection ports

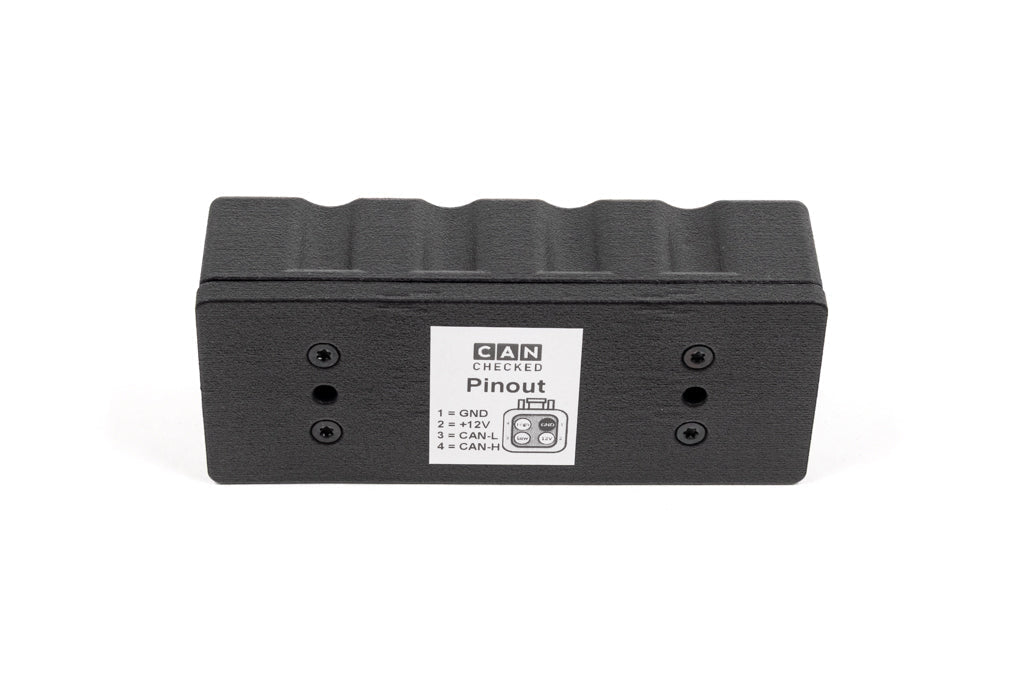

- Each port provides CAN High, CAN Low, 12V power, and Ground
- Compact housing for easy installation
- Configurable CAN bus separation and linking functions
- Selectable CAN bus termination resistors
- Compatible with CANchecked displays, sensors, logging devices, and aftermarket CAN bus equipment
- DTM-style connector design for secure motorsport-grade connections
- Ideal for motorsport, performance, and custom vehicle applications
