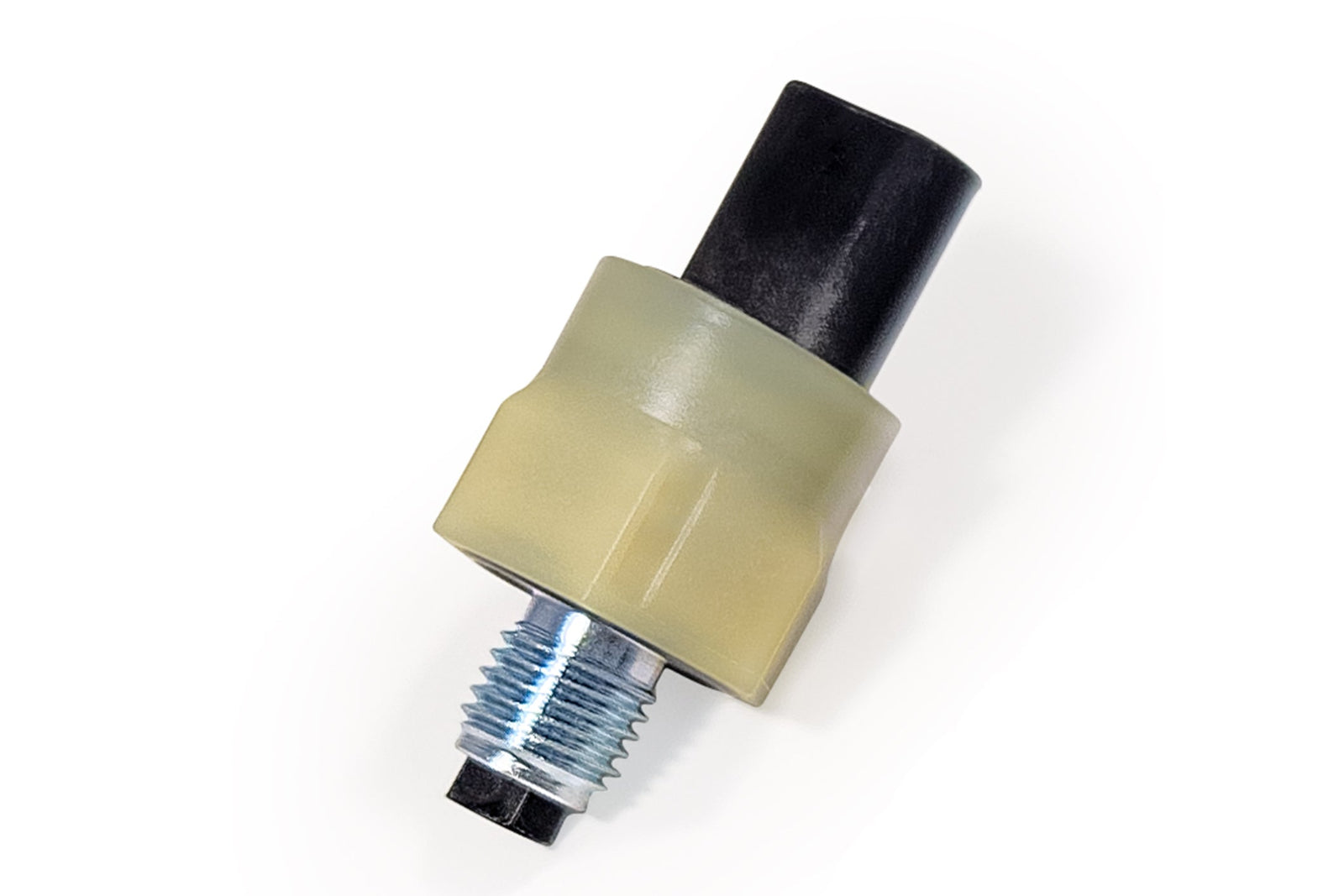

CANchecked CFS02 Temperature and Pressure Combo Sensor
Couldn't load pickup availability
Description
The CANchecked CFS02 Temperature and pressure Combo Sensor is a CANchecked sensor solution designed to supply accurate measurement data for advanced monitoring and display systems in street and motorsport vehicles.
It is well suited for projects that require broad system compatibility, and sensor expansion capability. The CFS02 Sensor is a combined electronic pressure and temperature sensor for oil, water, and fuels.
The sensor is compatible with various displays and gauges such as MFD15, MFD28, MFD32 as well as freely programmable engine control units (ECUs).
Product Details
- High-precision combined pressure and temperature sensor from large-scale production
- Suitable for oil, water, and fuel applications
- Wide measurement range for pressure and temperature
- M12x1.5 thread for versatile applications
- Compatible with CANchecked data displays and freely programmable control units
- Pressure measurement range: 0.5 - 10.5 bar (7.2 - 152 psi)
- Temperature measurement range: -40 to 160 °C (-40 to 320 °F)
- Thread: M12x1.5 male thread
- Signal type: PWM
- Combined pressure and temperature sensor for oil, fuel, and water
What’s Included
- Combined pressure and temperature sensor for oil, fuel, and water
- Quick start guide
