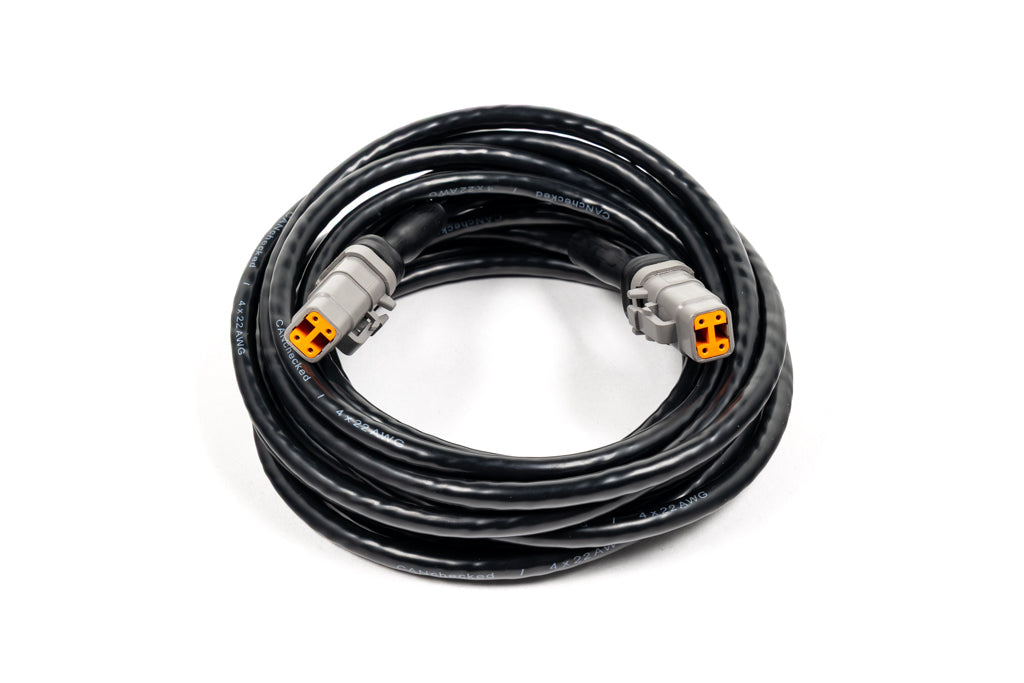

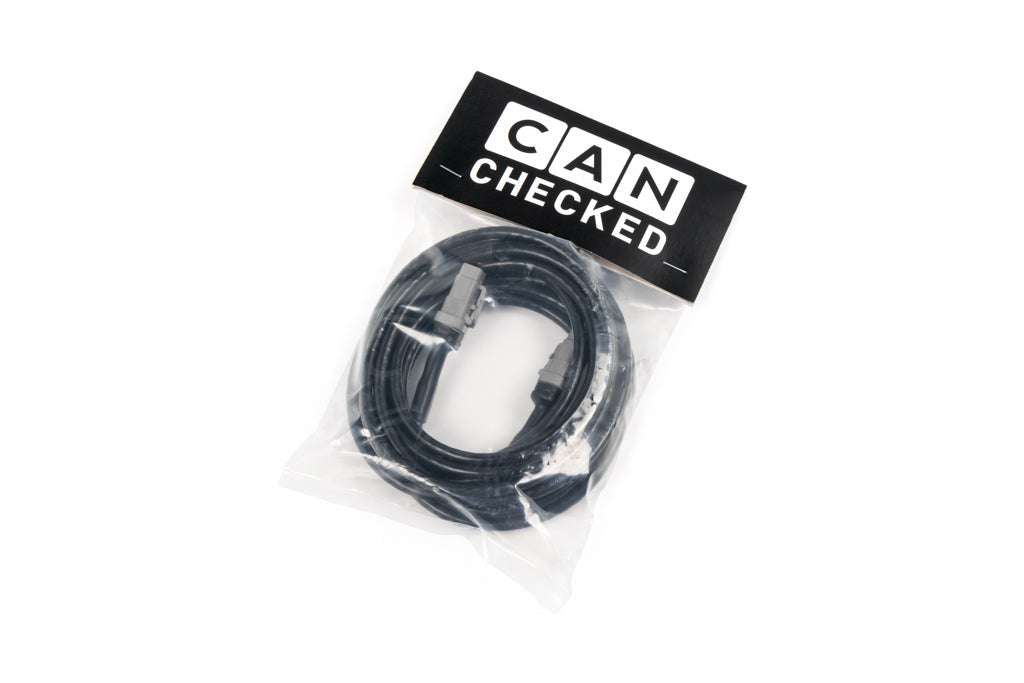

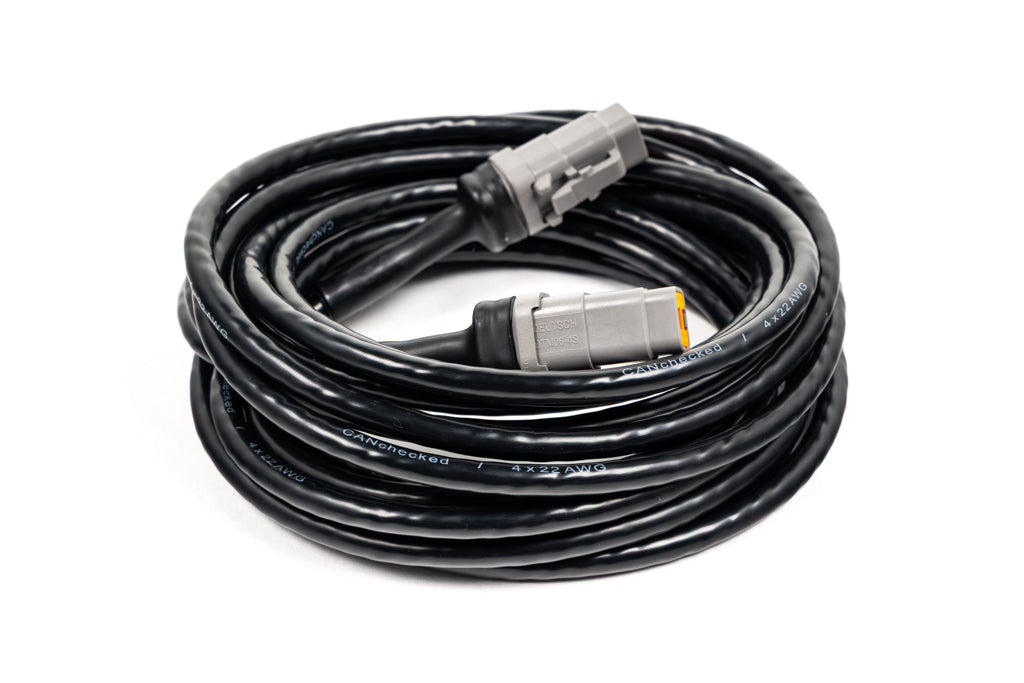

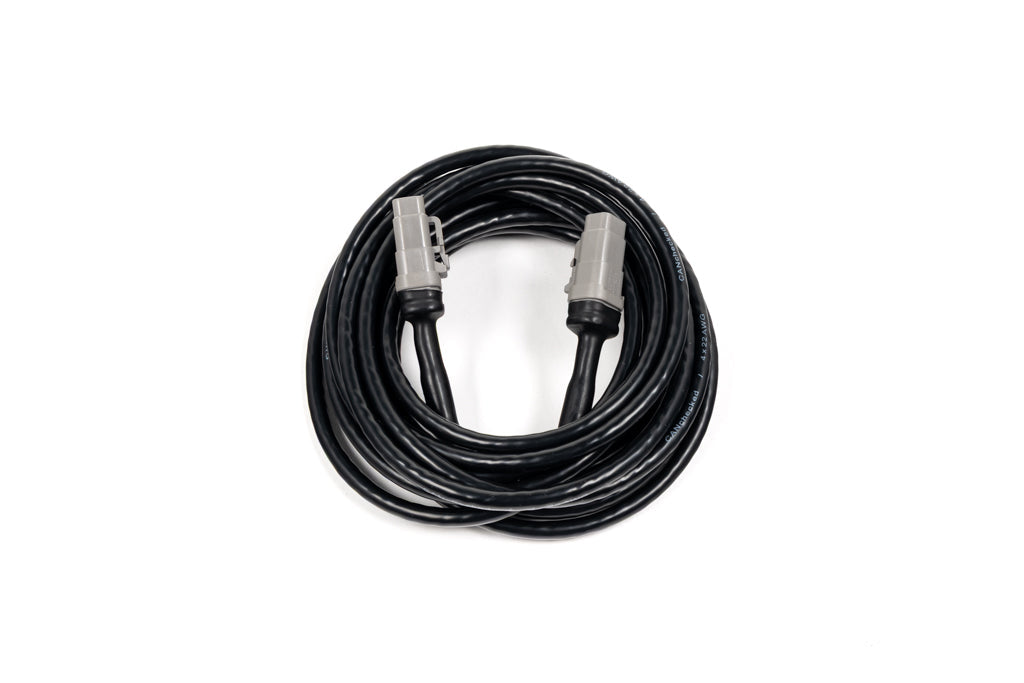

CANchecked Extension Cable DTM2DTM - Multiple Lengths
Couldn't load pickup availability
Description
The CANchecked DTM2DTM Extension Cable is available in multiple lengths ranging from 0.5m to 4.5m, providing a professional solution for motorsport and performance vehicle installations that require extended CAN bus routing. Designed to provide a reliable connection between CANchecked's MFDxx Multi Function Displays, CBDxx CAN bus Distribution Modules, TCCxx Thermocouple Converters, as well as the Brake and Tire Temperature Monitoring Systems; in addition to any DTM-standard compatible components.
Constructed using 4x22AWG twisted pair wiring and protected by a durable black PVC outer jacket, the cable is engineered to withstand harsh automotive environments. The outer casing is flame-retardant and resistant to petrol, diesel, and oil exposure, making it suitable for race vehicles, track builds, and demanding street applications. Waterproof DTM06-4S-E007 female socket connectors with integrated kink protection are fitted on both ends to provide secure connections and long-term reliability.
This extension cable is ideal for any vehicle setup with multi-display installations or applications with various CAN bus hubs and connected devices. The DTM2DTM cable maintains the same CANchecked wiring standard used throughout the DTM-Line ecosystem, simplifying installation while ensuring compatibility across supported devices.
Product Details
- Lengths:
- 0.5 meters
- 1.0 meters
- 2.0 meters
- 3.5 meters
- 4.5 meters
- DTM06-4S-E007 connectors on both ends
- Integrated connector kink protection
- 4x22AWG twisted pair cable construction
- Black PVC outer jacket
- Flame-retardant construction
- Resistant to petrol, diesel, and oil exposure
- Outer diameter: 6.2mm
- Waterproof and vibration-resistant design
- Built for motorsport and performance automotive applications
Technical Specifications
- Pin 1: Ground (GND)
- Pin 2: 12V Positive
- Pin 3: CAN Low
- Pin 4: CAN High
Fitment
