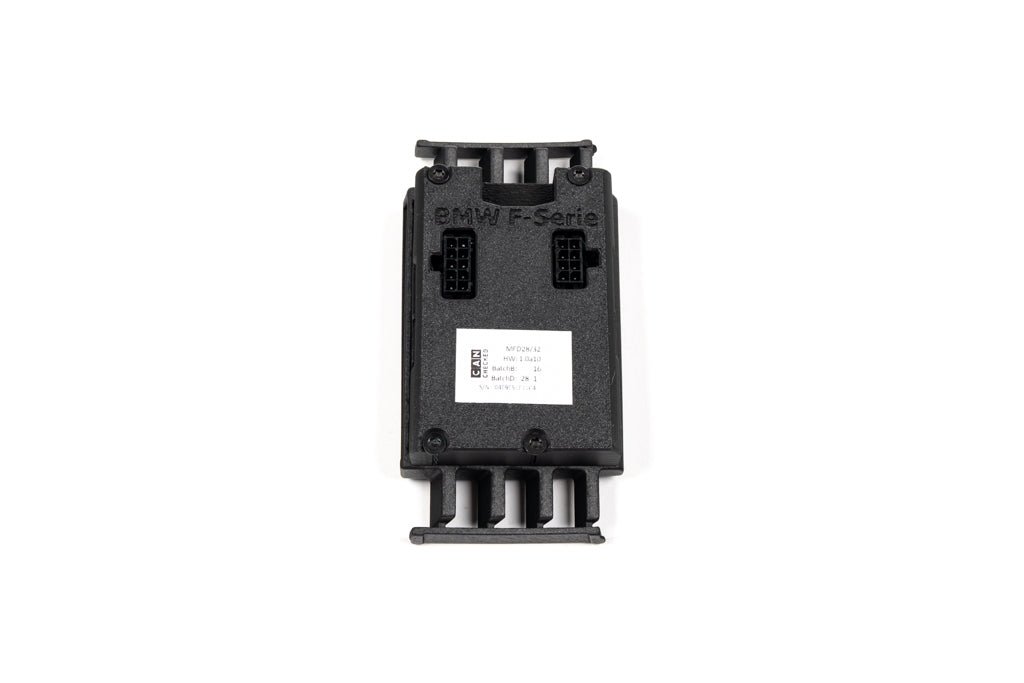

CANchecked F8X / F3X / F22 MFD28 Multi Function Display | 2.8" Gen2 (LHD)
Hurry up! Only 4 item(s) items left in stock
Couldn't load pickup availability
Description
The CANchecked BMW F-Series Multi Function Display - 2.8" Gen2 (LHD) is a fully integrated data display solution designed specifically for BMW F-Series models including the F87 M2, F80 M3, and F82/F83 M4. Engineered to deliver real-time access to critical engine and vehicle data, this system transforms your interior with a seamless OEM+ appearance while providing motorsport-level monitoring capability.

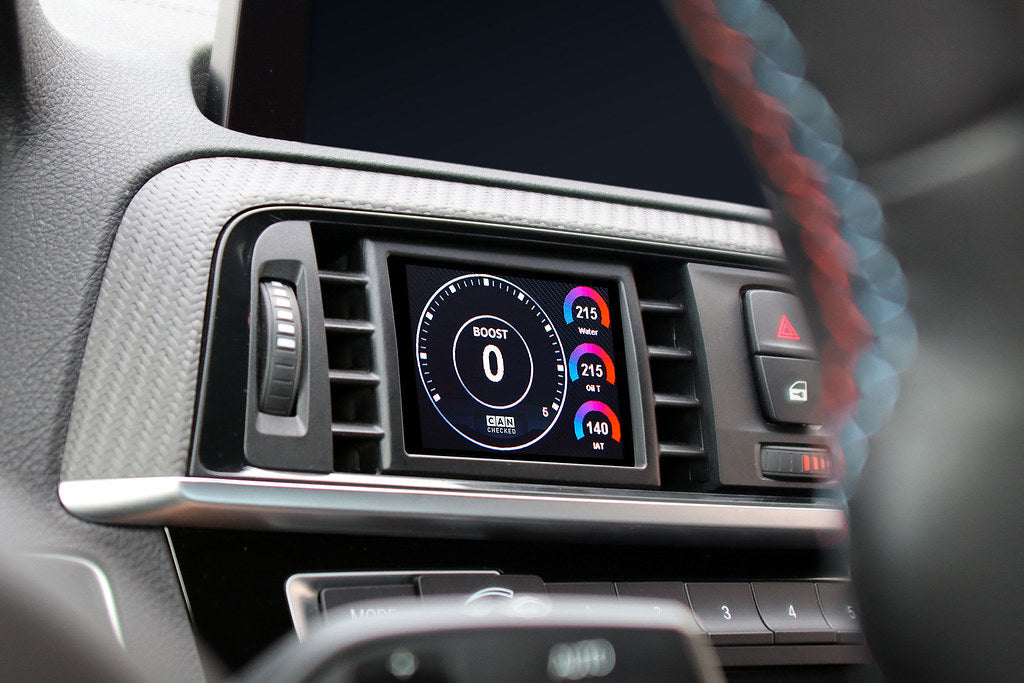

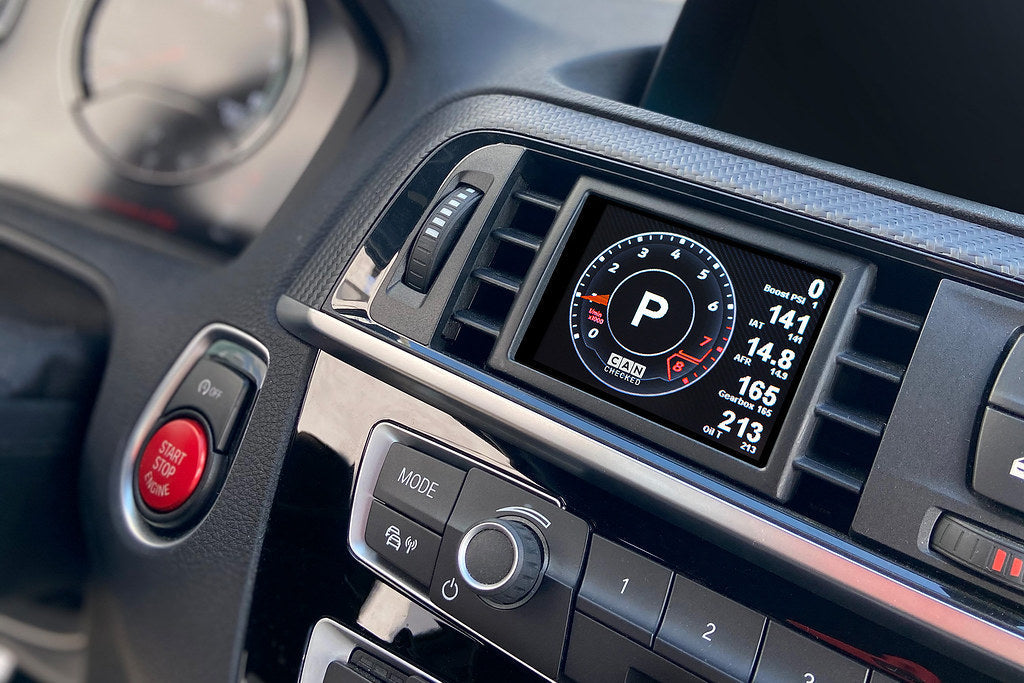

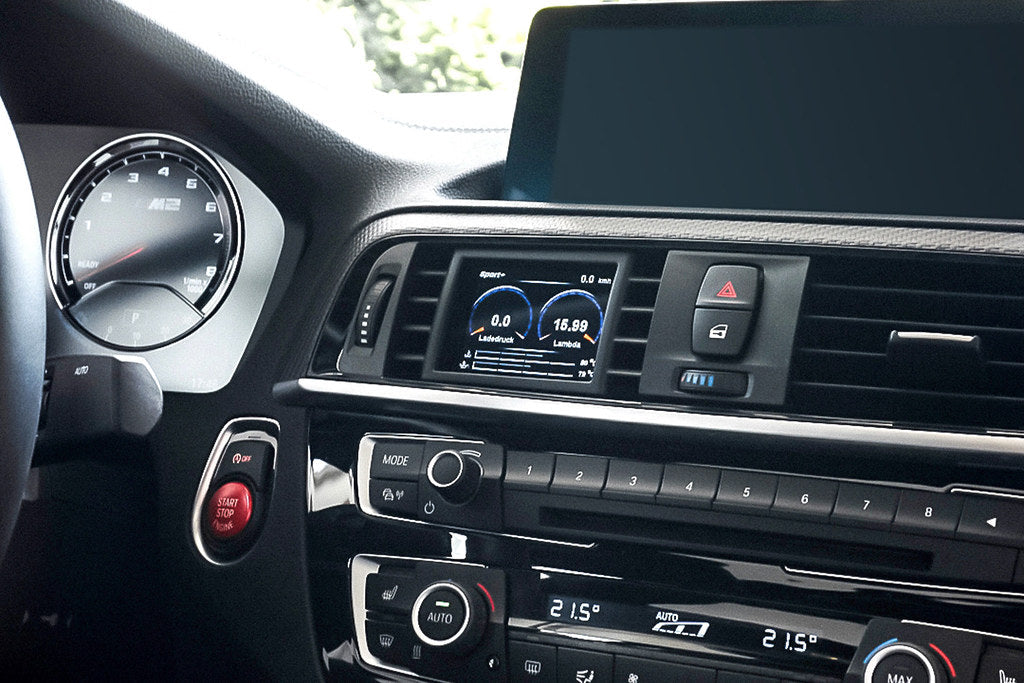

Unlike universal gauge solutions, this CANchecked display is designed with a vehicle-specific trim panel that integrates directly into the dashboard without obstructing factory ventilation. The result is a clean, factory-like installation that maintains interior functionality while adding a powerful data interface. Utilizing CAN Bus communication, the display queries vehicle data directly from the ECU, allowing access to a wide range of parameters with exceptional speed and accuracy.
The Gen2 system features a high-resolution 2.8-inch display powered by CANchecked’s proven MFD28 platform. With up to 128 sensors accessible depending on ECU compatibility, drivers can monitor temperatures, pressures, fueling, ignition data, and performance metrics in real time. Whether for daily driving, tuning, or track use, this system delivers the data needed to fully understand and optimize vehicle performance.
Designed for ease of use, the display includes pre-configured layouts for quick setup while also supporting full customization through CANchecked’s Display Setup Software (DSS). Drivers can switch between views directly using the factory cruise control buttons when cruise control is inactive, allowing safe and intuitive operation without distraction.
Product Details

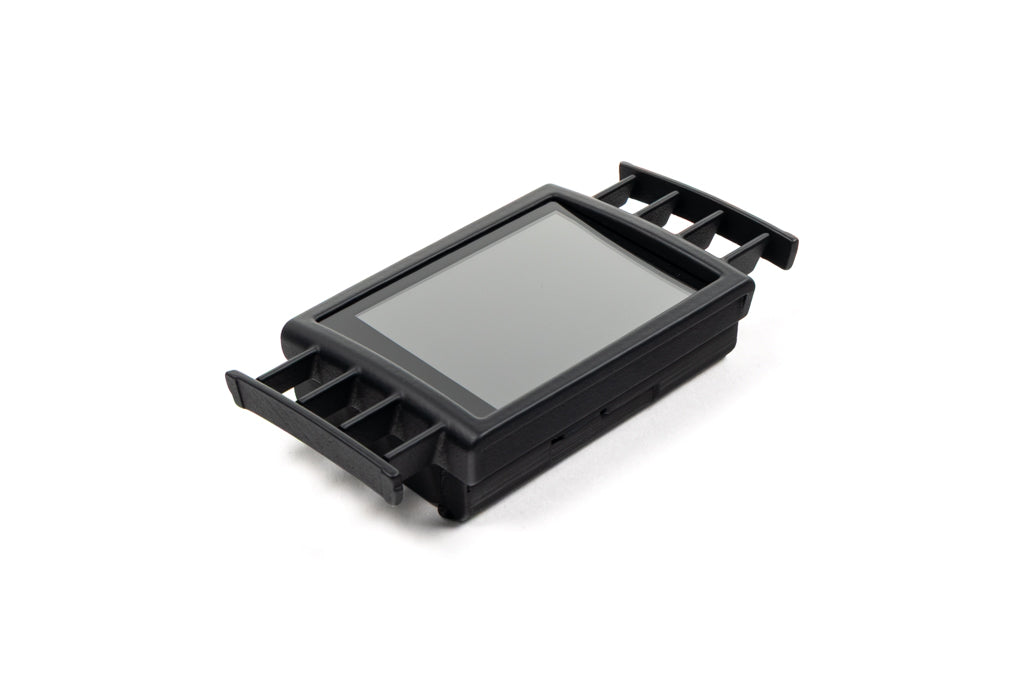

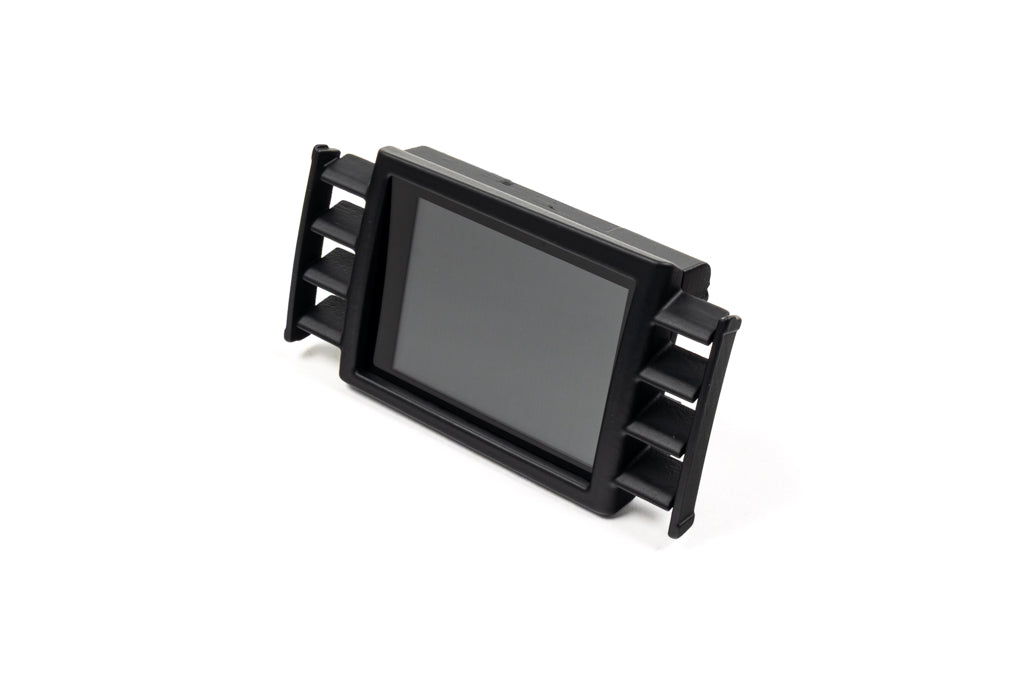

- 2.8-inch high-resolution multi-function display (MFD28 Gen2 platform)
- Vehicle-specific integration with OEM-style trim panel

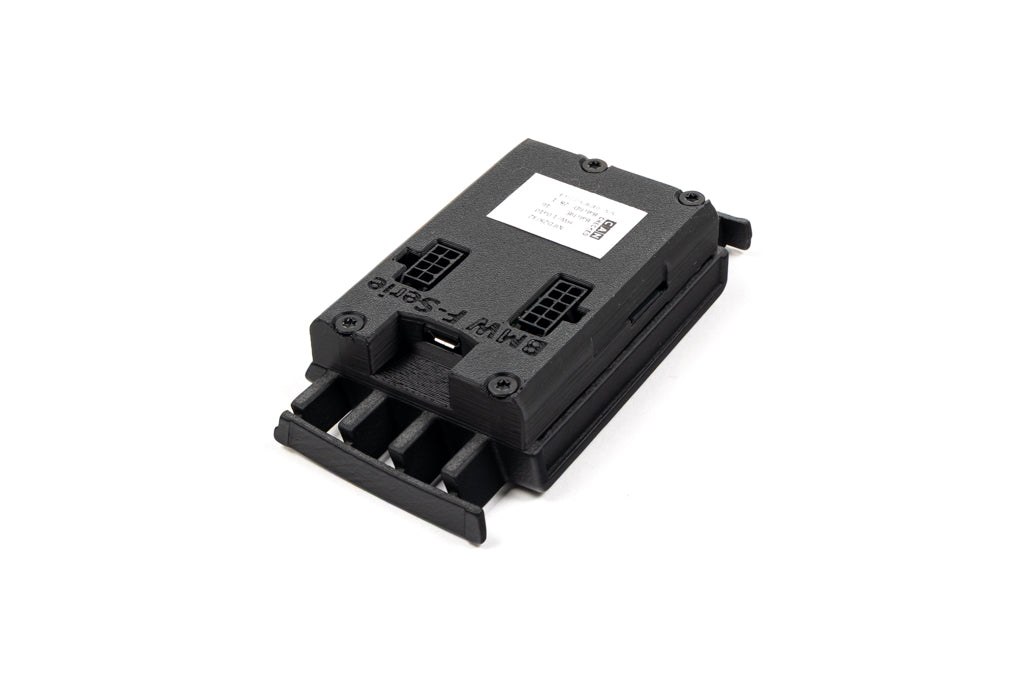

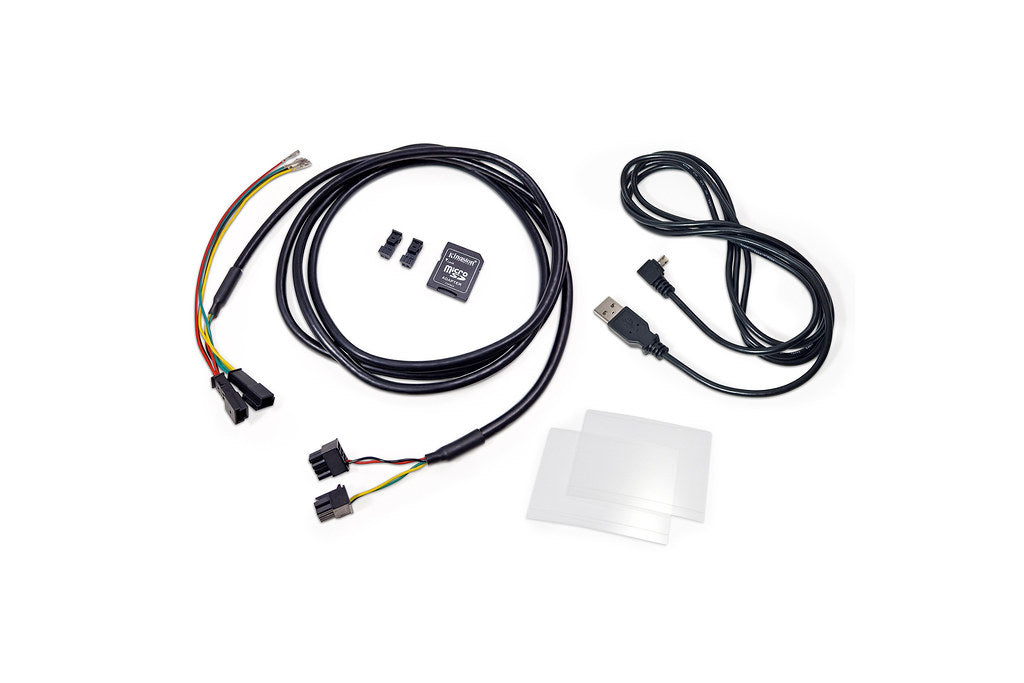

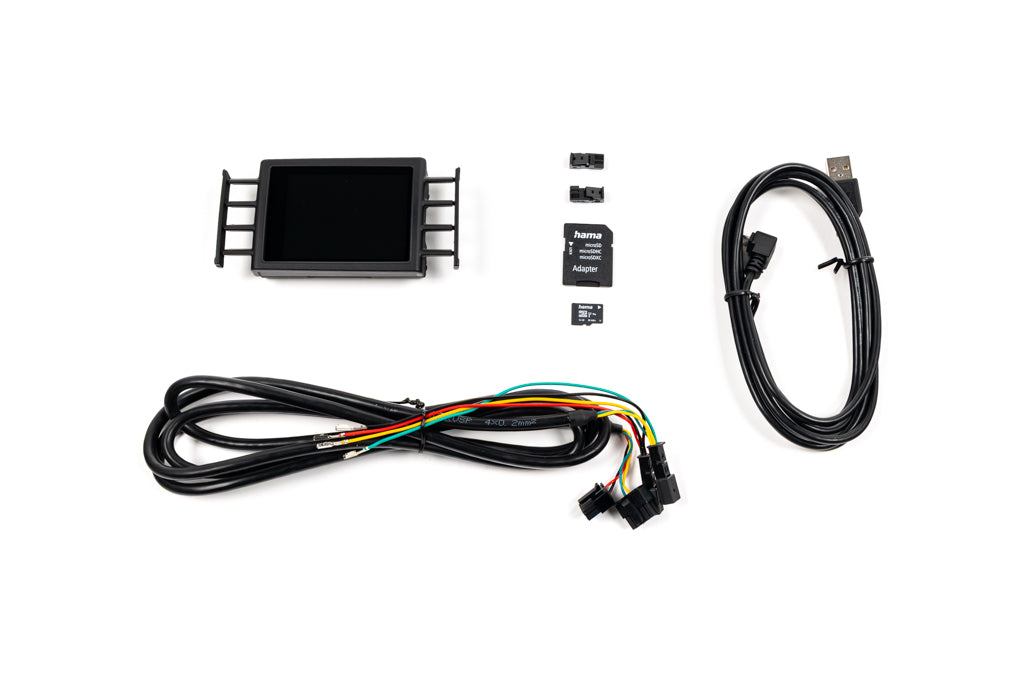

- Plug and play installation using included wiring harness
- CAN Bus communication for direct ECU data access
- Supports up to 128 sensor values depending on ECU compatibility
- 10 fully configurable display views via DSS software
- Pre-configured layouts for quick setup
- 4 additional analog inputs for external sensors
- Cruise control button integration for display navigation
- Internal data logging capability for performance analysis
- Optional anti-reflective film for improved visibility
- LHD version
- SKU: CC34064
Technical Overview
- Direct ECU data access via CAN Bus communication
- Supports a wide range of parameters including temperature, pressure, fueling, ignition, and performance data
- Displays both ECU broadcast data and analog sensor inputs
- High-speed data query optimized for BMW protocols
- Compatible with DSS (Display Setup Software) for full customization
- Internal logging allows post-drive data analysis and video synchronization
- TRI configuration file included for pre-defined sensor mapping
Display Functions

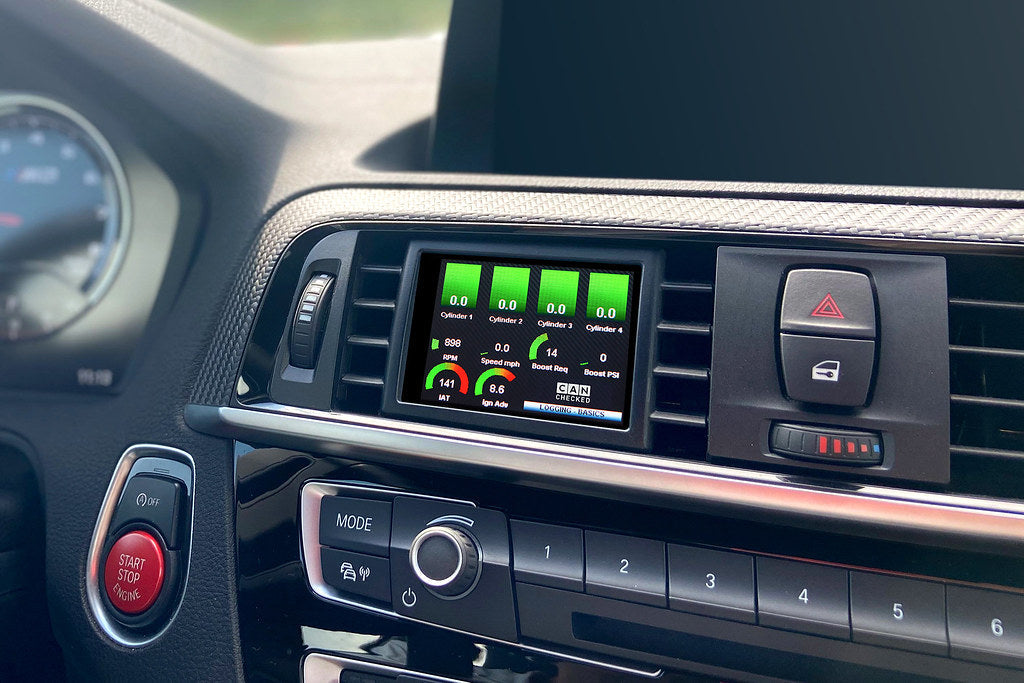

- Multiple configurable layouts including multi-value, bar graph, and gauge-style views
- Performance monitoring including G-forces, speed, and steering angle
- Real-time boost, oil pressure, fuel pressure, and temperature monitoring
- Gear display and throttle input tracking
- Custom startup screen capability
- Integrated warning alerts and threshold monitoring
- Navigation via factory cruise control buttons
Driver Performance Features
- G-force tracking (lateral and longitudinal acceleration)
- Brake pressure and throttle position monitoring
- Steering angle data for cornering analysis
- Track-focused data views for performance driving improvement
- Downloadable logs for post-session review and analysis
Supported Engine Data (Varies by Model)
- Engine oil temperature, coolant temperature, intake air temperature, exhaust gas temperature
- Boost pressure, fuel pressure, oil pressure, brake pressure
- Lambda values, ignition timing, injection correction
- Engine speed, torque, power output, air mass, throttle angle
- Vehicle speed, battery voltage, gear position
Supported Engines
- B37, B48, B57, B58
- M54, M57
- N13, N20, N47, N52, N54, N55, N57
- S55, S58, S63
