CANchecked Ford MK5 / MK6 / MK7 Fiesta MFD15 Multi Function Display | 1.5" Gen2 (LHD)
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Description

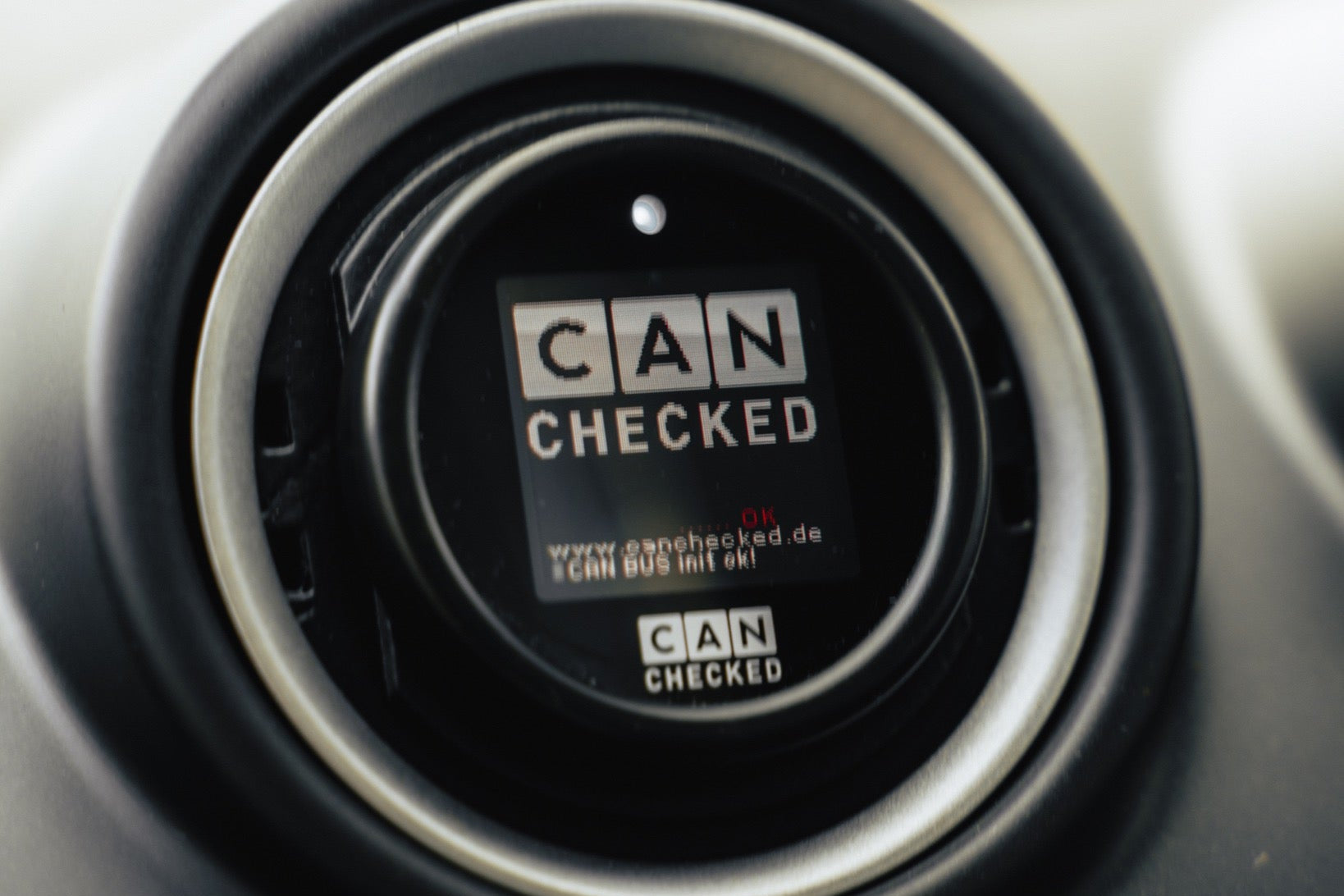

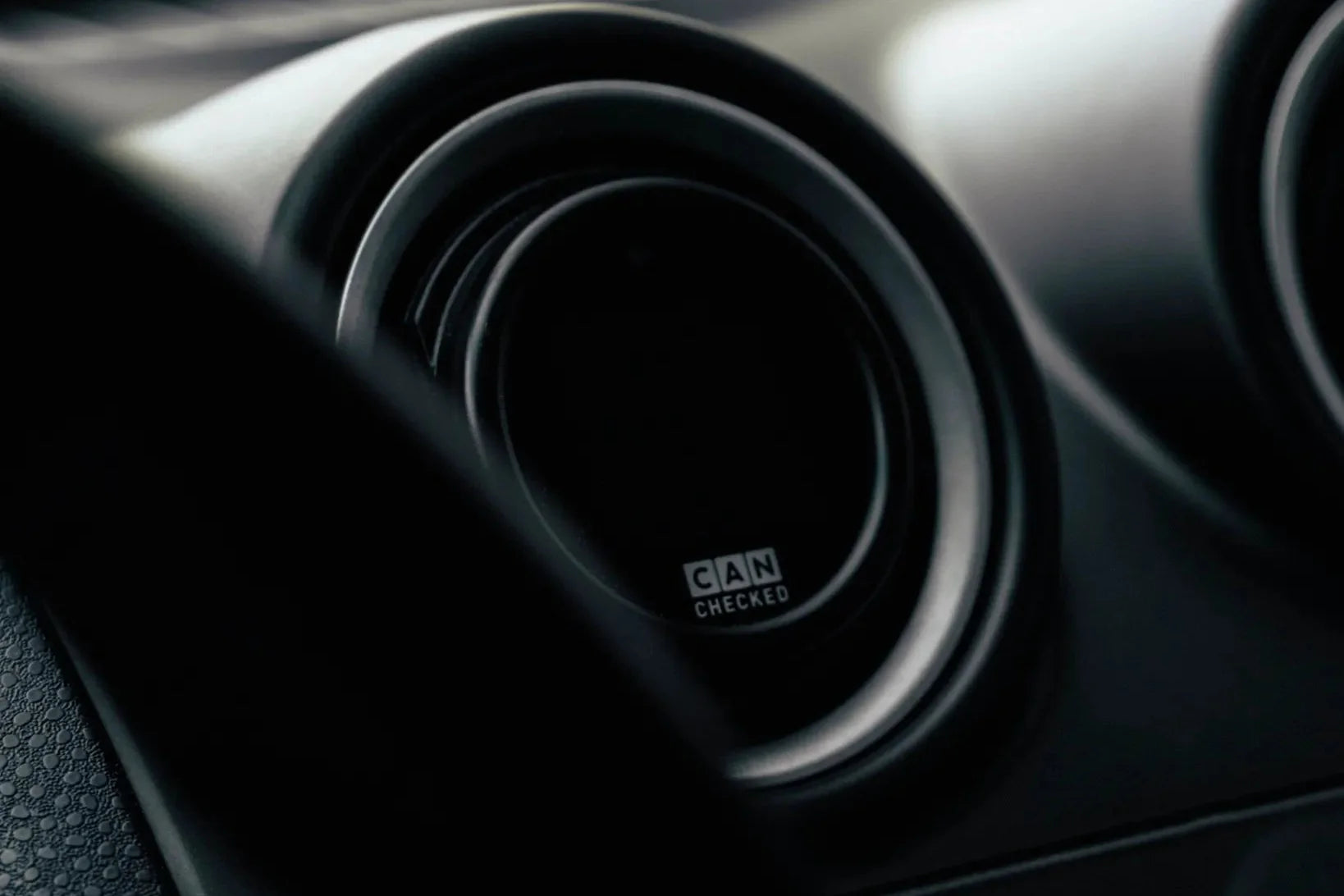

The CANchecked MFD15 Gen2 Data Display for the Ford Fiesta MK5, MK6, and MK7 provides a compact, vehicle-specific monitoring solution that places critical engine and vehicle data directly within the driver's field of view. Supplied with a Fiesta-specific mounting bezel and connection harness, this package delivers OEM-style integration while unlocking advanced monitoring, diagnostics, and customization capabilities.

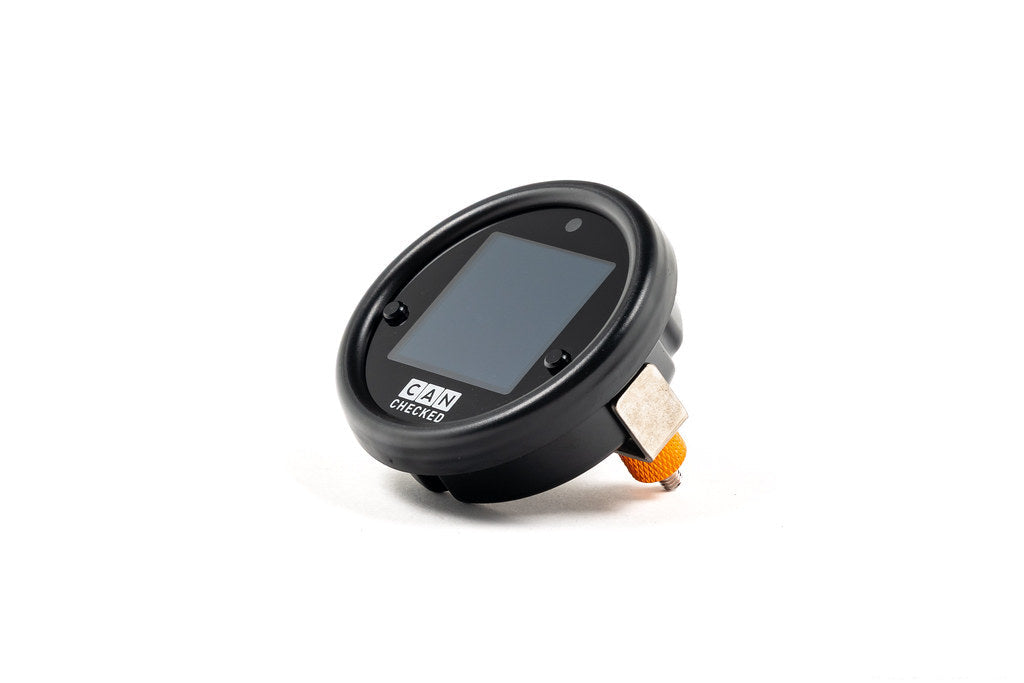

At the heart of the system is the compact MFD15 Gen2 display, featuring a high-contrast OLED screen engineered for excellent visibility even in direct sunlight. The display supports CAN bus communication, OBD2 data acquisition, analog sensor inputs, and WiFi connectivity, allowing users to configure the display, update firmware, upload custom startup screens, and manage settings through CANchecked's Online Display Setup Software (oDSS).
Designed for both street and motorsport applications, the MFD15 Gen2 supports up to eight customizable display pages and can monitor a wide range of engine, performance, and diagnostic parameters. Whether you're tracking oil temperature, boost pressure, ethanol content, exhaust gas temperatures, or ECU data, the system provides a highly configurable platform tailored to your specific requirements.
Product Details
- Vehicle-specific kit designed for Ford Fiesta MK5, MK6, and MK7 applications
- High-contrast OLED display with excellent daylight visibility
- Compact 52mm diameter design with 12.5mm installation depth
- Integrated shift light and warning LED functionality
- CAN bus and OBD2 communication support
- WiFi-enabled configuration and firmware updates through oDSS
- Supports up to 8 customizable display pages
- Monitors up to 64 ECU parameters depending on vehicle and ECU support
- Displays up to 128 OBD2 values simultaneously
- Compatible with ISO 11898-2 and SAE J2284 communication protocols
- Supports custom CAN streams and numerous aftermarket ECUs
- Connect up to 6 analog sensors directly to the display
- Direct ethanol sensor support with optional license
- Custom startup logo and display color customization
- Optional live data logging capability
- Optional CAN switching and analog input forwarding functionality

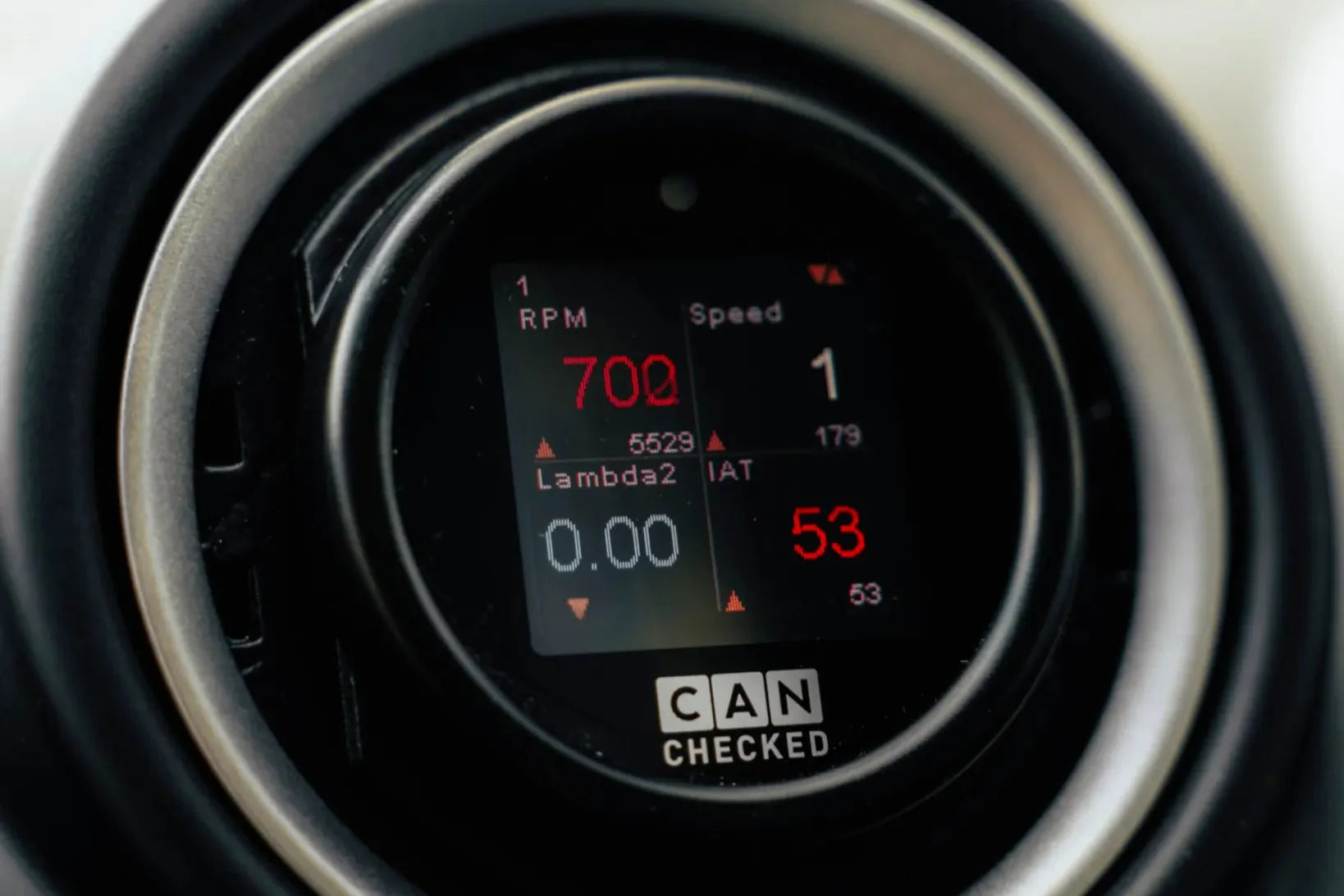

Display Modes
- Analog Gauge
- Dual Value Display
- Single Value Display
- Gear Indicator
- 4-Value Display
- 6-Value Display
- Bar Graph Displays
- Round Gauge Display
- Performance Meter
- Multi-Value Dashboard Views

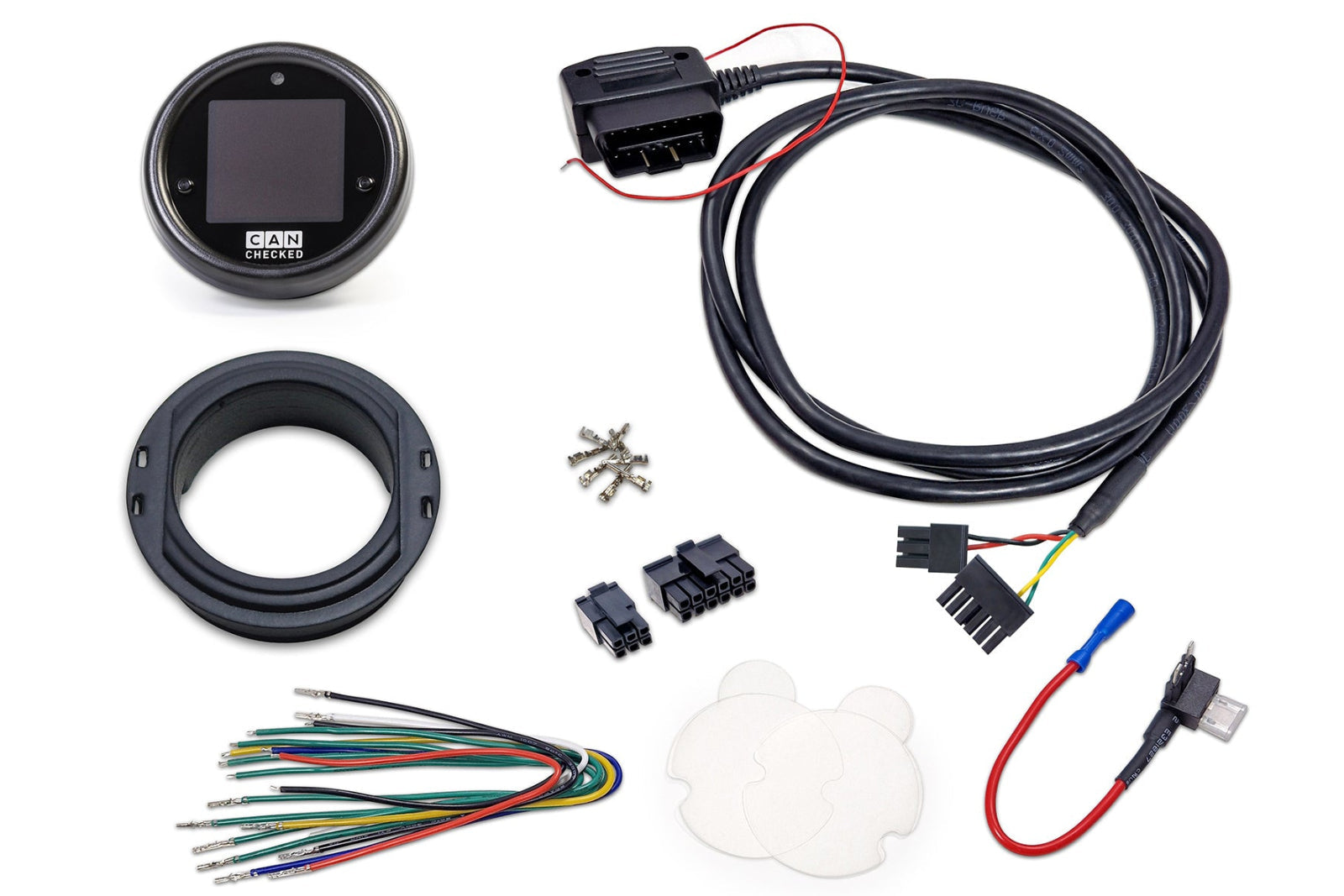

What's Included
- CANchecked MFD15 Gen2 Data Display
- Ford Fiesta MK5/MK6/MK7-specific mounting bezel
- Vehicle-specific connection harness
- Quick Start Guide

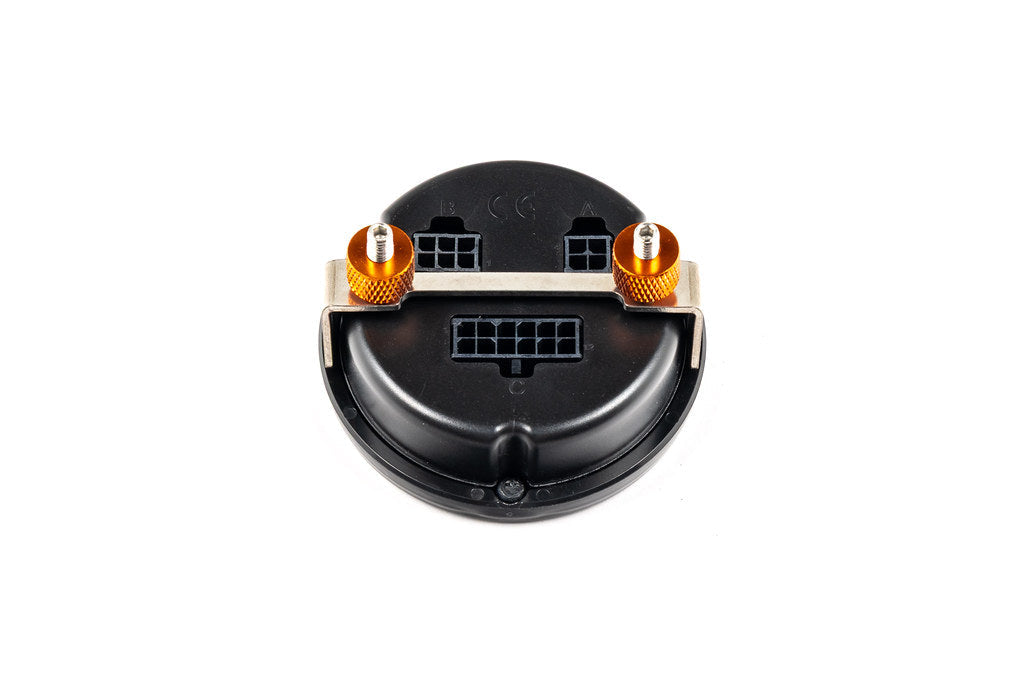

- Connector B (6-pin Molex)
- Connector C (12-pin Molex)
- Pre-assembled wiring leads
- Additional crimp pins
- Two 1K pull-up resistors for NTC sensors
Compatible CANchecked Accessories
- ETK01 External Rotary Controller
- CBD08 CAN Distribution Hub
- ANC04 Analog Input Harness
- NTC01 Temperature Sensor
- TCC01 Type-K Exhaust Gas Temperature Converter
- FLP01 Pressure Sensor
- BST10 Boost Pressure Sensor
