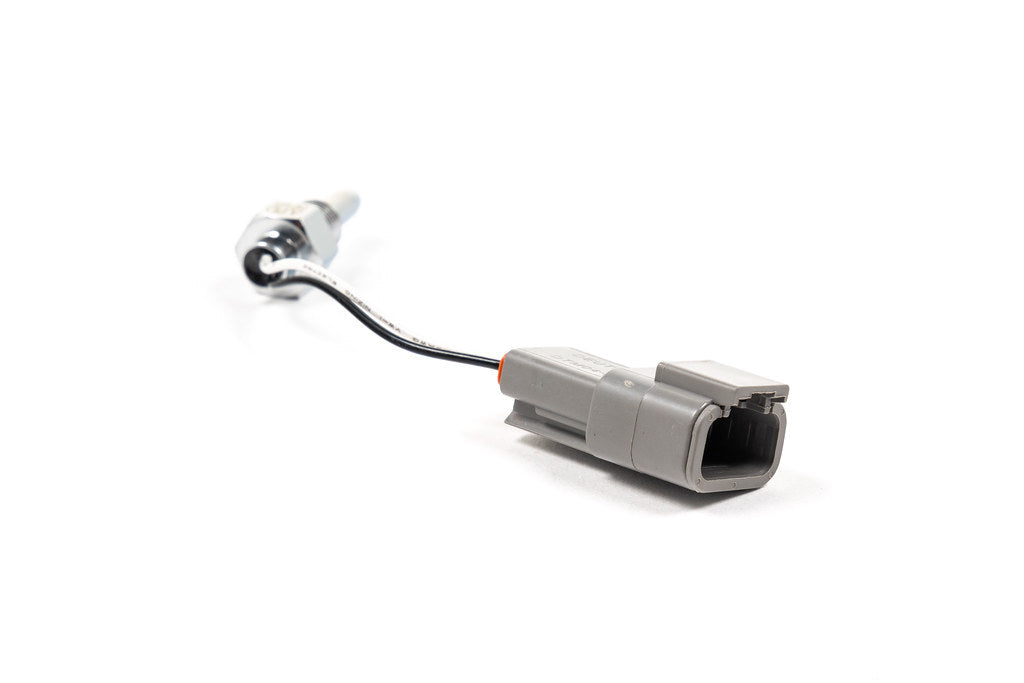

CANchecked NTC01 Temperature Sensor with DTM04-3P & Integrated Resistor
Hurry up! Only 3 item(s) items left in stock
Couldn't load pickup availability
Description
The CANchecked NTC01 Temperature Sensor with DTM04-3P and Integrated Resistor is designed for accurate liquid temperature monitoring across a wide range of vehicle applications. Ideal for measuring engine oil, coolant, transmission oil, and differential temperatures, the NTC01 provides a clean and efficient sensor solution for CANchecked display integrations and other compatible analog input systems.
This updated NTC01 sensor includes an integrated 1k-ohm pull-up resistor and is supplied with a DTM connector, simplifying the wiring process and reducing installation complexity. The sensor only requires 5V, ground, and a signal wire, allowing for a more streamlined connection when adding additional temperature monitoring to a CANchecked system.
For CANchecked MFD15, MFD28, and MFD32 Gen2 devices, the TRI/TRX file is preconfigured so that when the signal line is connected directly to analog input 1, the temperature values are displayed plug and play. The sensor can also be connected to other analog inputs or compatible components when configured with the correct characteristic curve.
The sensor features a 1/8" NPT thread, which also fits M10x1 applications, and should be tightened to 10 Nm during installation.
Product Details
- Designed for liquid temperature monitoring
- Ideal for engine oil, coolant, transmission oil, and differential temperature measurement
- Integrated 1k-ohm pull-up resistor
- Includes DTM connector for simplified wiring
- Requires 5V, ground, and signal wire
- Plug-and-play display values when used with MFD15, MFD28, and MFD32 Gen2 devices on analog input 1
- Can be configured for use with other analog inputs or compatible components
- 1/8" NPT thread, also fits M10x1
- Recommended tightening torque: 10 Nm

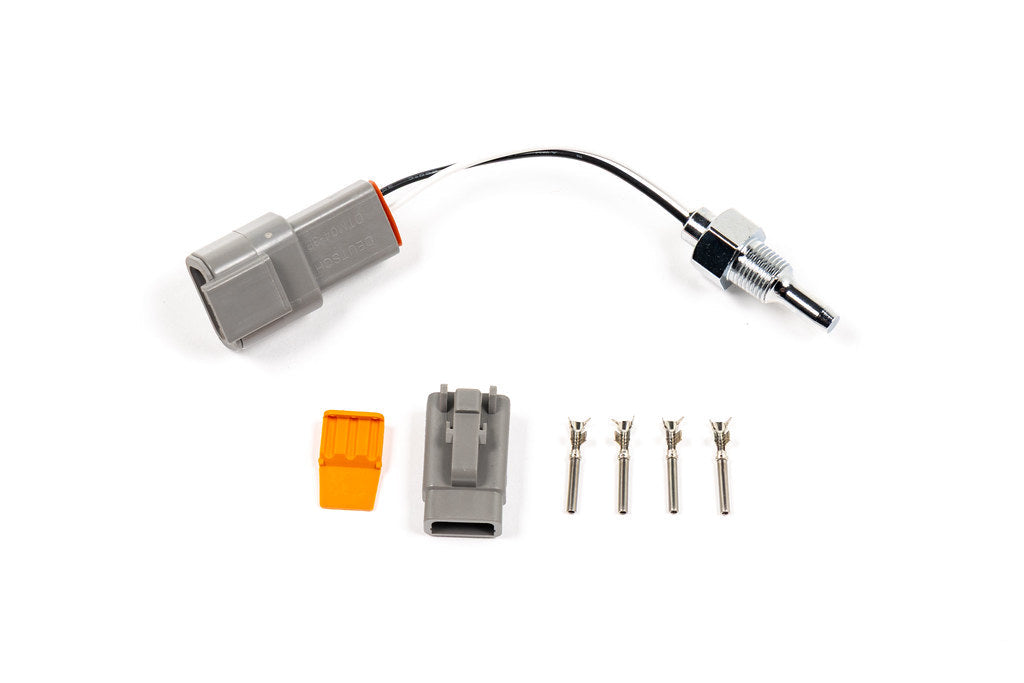

What’s Included
- NTC01 temperature sensor with female connector and integrated resistor

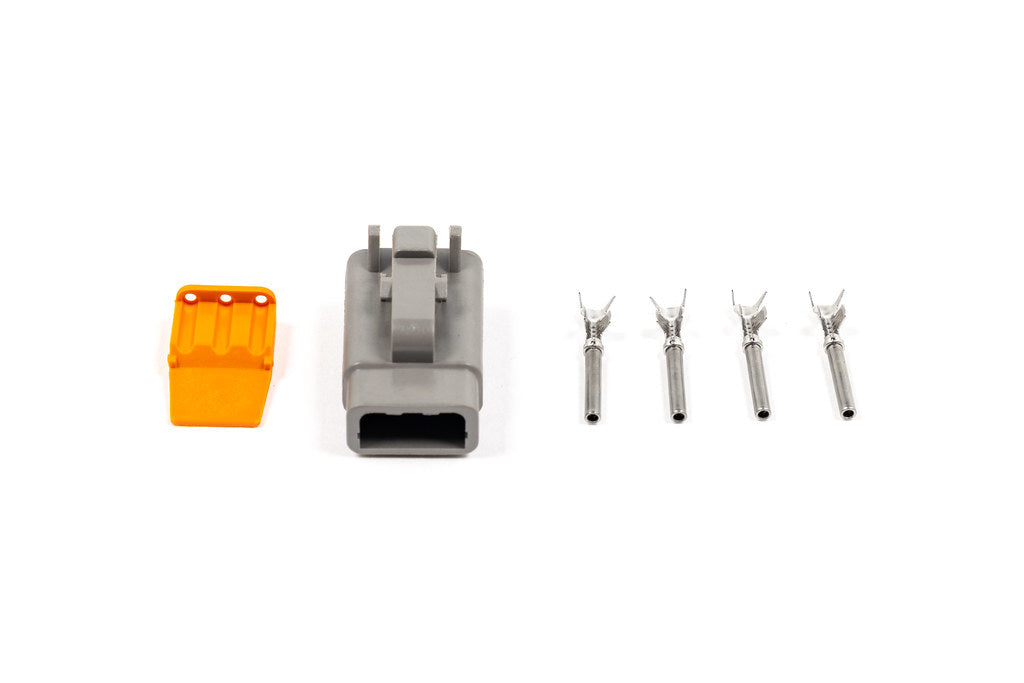

- Matching DTM04-3P counter connector
- 3 DTM pins for self-crimping
- WM-3P Wedgelock for secure connector assembly
Pin Assignment
- Pin 1: Ground / GND
- Pin 2: Signal
- Pin 3: +5V
