CANchecked TMU04 Tire Temperature Monitoring Set - Wireless and Charging Box
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Description
The CANchecked TMU04 Tire Temperature WiFi-enabled Monitoring Set is a CANchecked monitoring solution designed to help drivers and builders keep a closer eye on temperature and vehicle condition data in high-performance applications. Enhance your vehicle's performance monitoring with wireless temperature monitors featuring an advanced infrared temperature sensor with CAN connectivity.
It is well suited for projects that require wireless sensor communication, temperature monitoring, and tire condition monitoring. Perfect for both professional racing and high-performance street vehicle testing, the Wireless Temperature Monitor provides unmatched convenience and reliability, making it easier than ever to track and manage tire performance data.

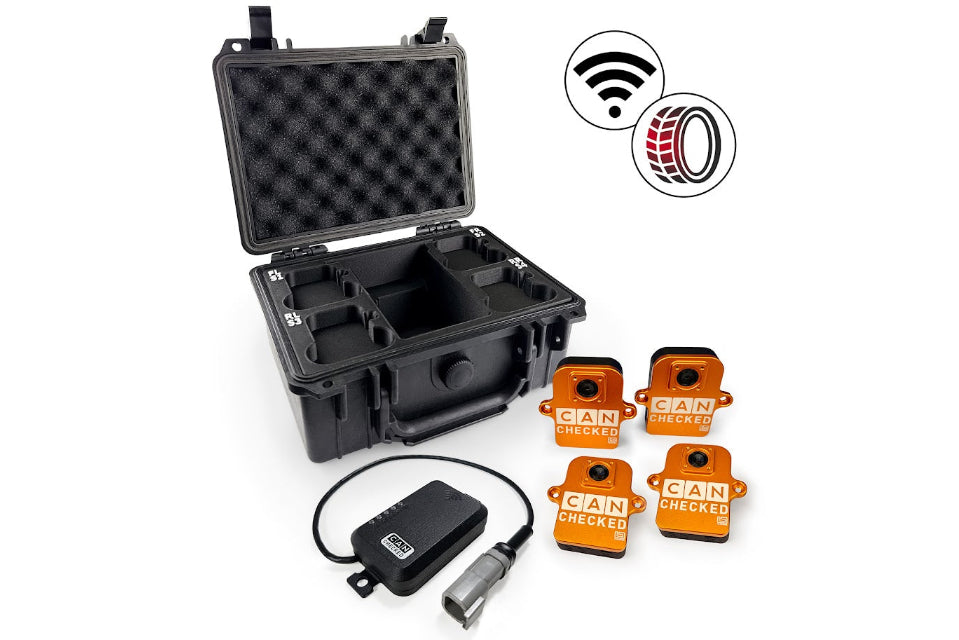

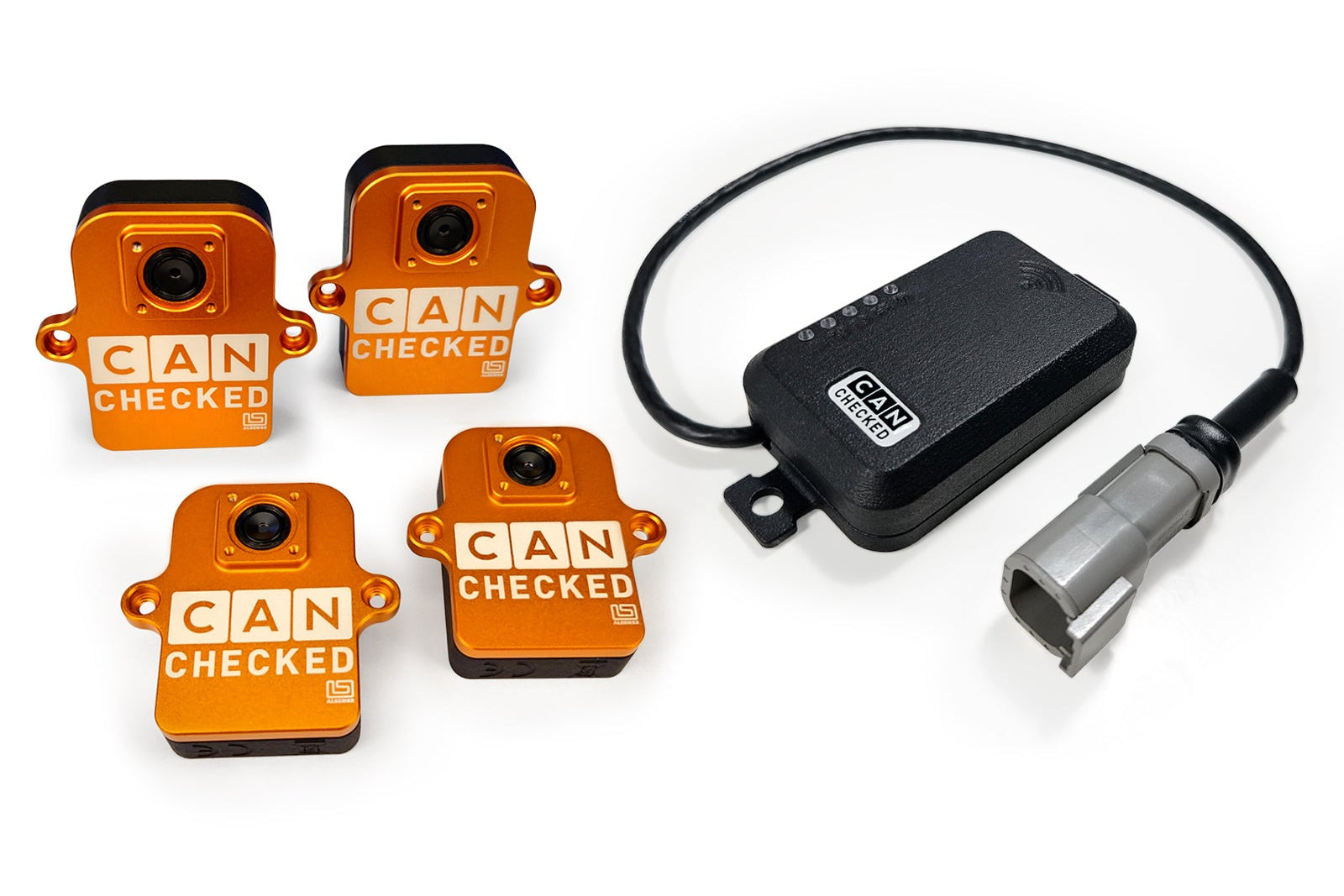

This complete set includes 4 multi-channel sensors (1 for each corner of the vehicle) and a CAN wifi receiver with a DTM04-4P connector providing real-time, high-precision data for optimized temperature management at the track. In addition, the optional comprehensive charging box not only charges all four sensors simultaneously when not in use, but also provides dedicated storage for the CAN receiver.
Product Details
- Wireless and Easy-to-Install: Simple setup with quick transfer between vehicles

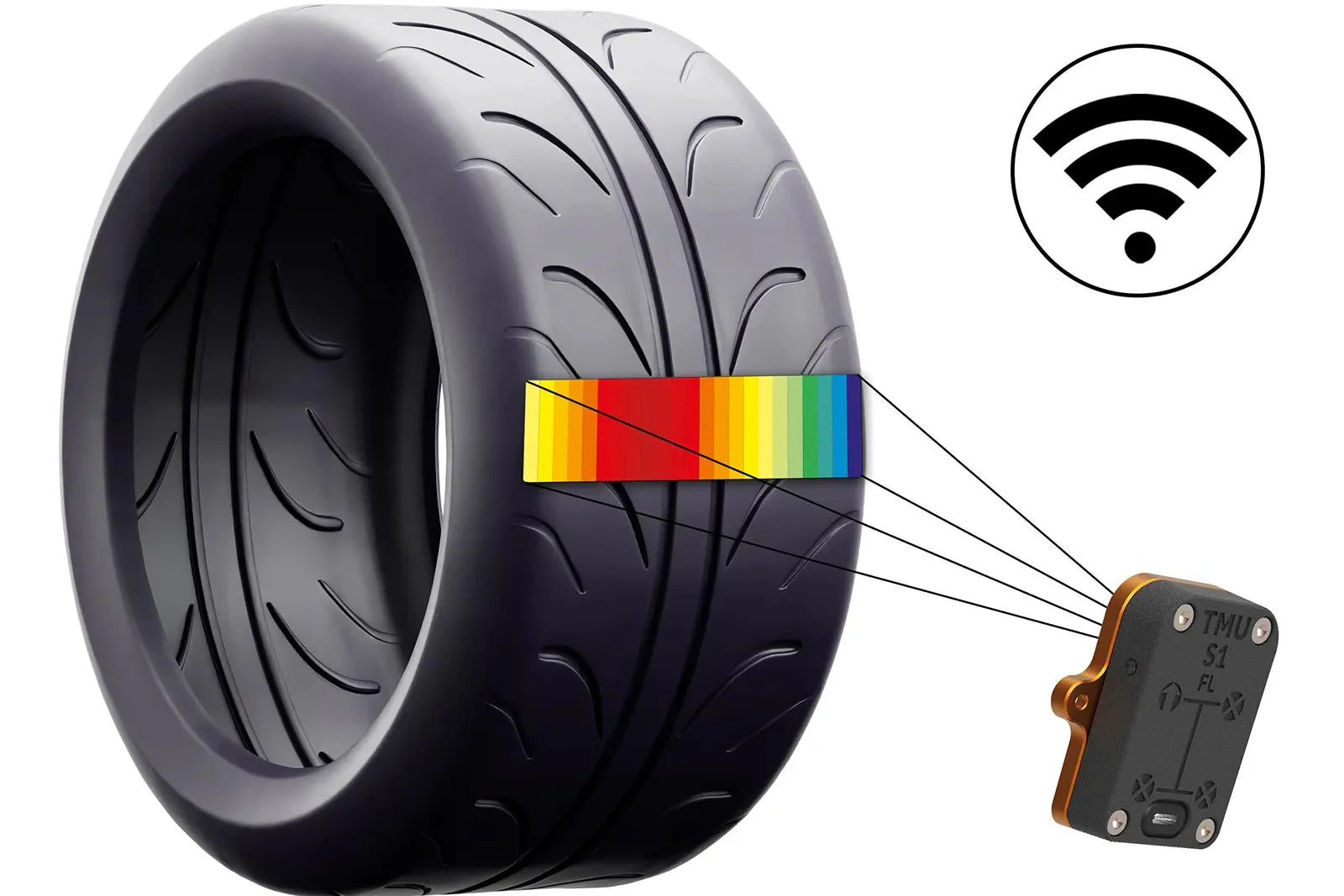

- Advanced Multi-Channel Infrared Monitoring
- Configurable 8 temperature measurement channels per tire sensor
- Adjustable refresh rate up to 50Hz for precise, real-time data insights
- Rechargeable Battery for Extended Use

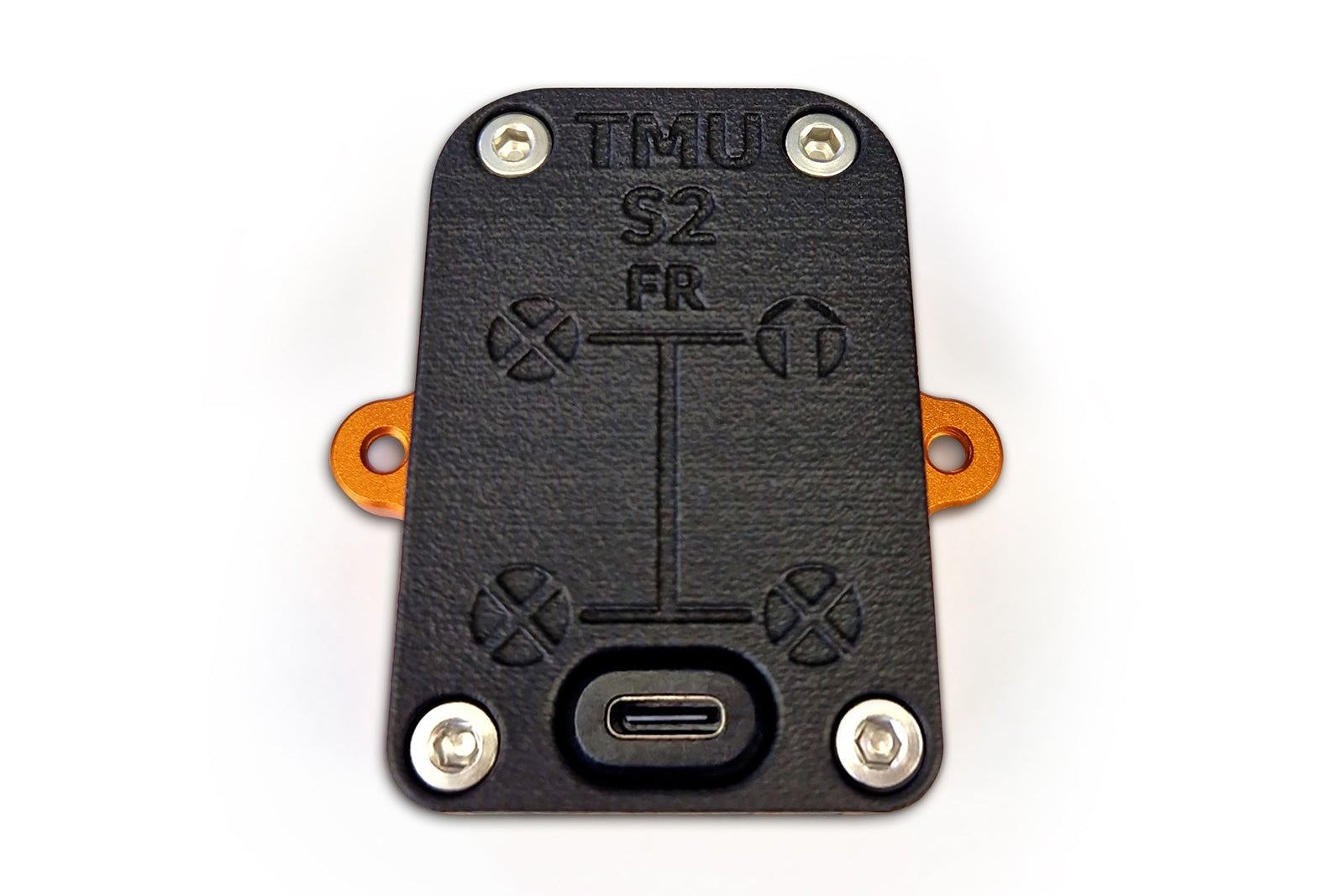

- 250mAh battery (USB-C charged) in each sensor
- Delivers up to 15 hours of active track use per charge
- High Precision Sensors with Wide Temperature Range
- Temp range: -40° to +300°C
- Accuracy: +/- 1% up to 150°C and +/- 3% over 150°C
- Field of view: 110° x 6° for full coverage, with an optional 55° for focused measurements
- Rugged and Compact Design
- Durable aluminum/polyamide housing
- IP65 rated for tough environments
- Dimensions: 64.0 x 42.0 x 17.5 mm
- Weight: 57g
- Operating temp: -40° to 85°C
-

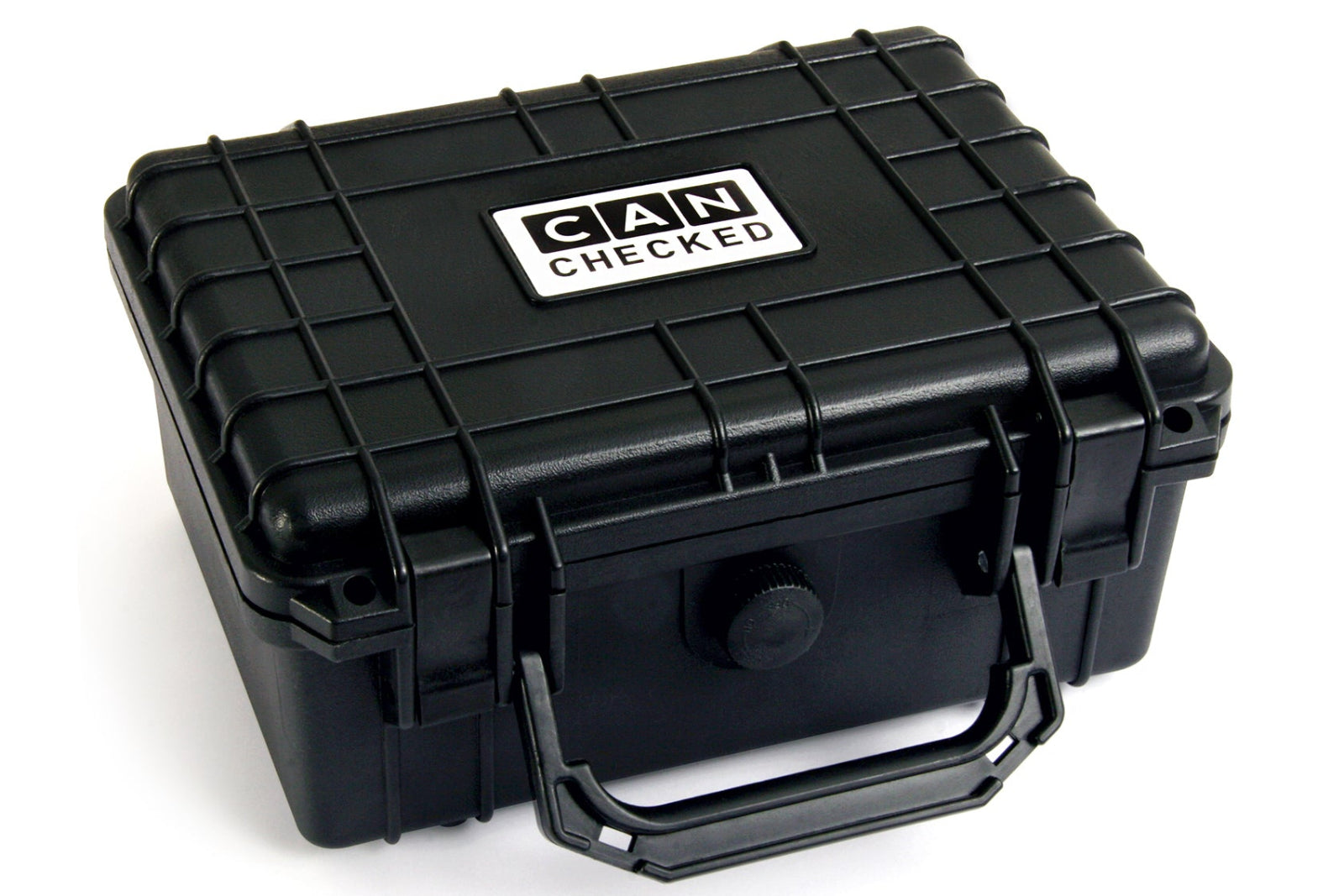

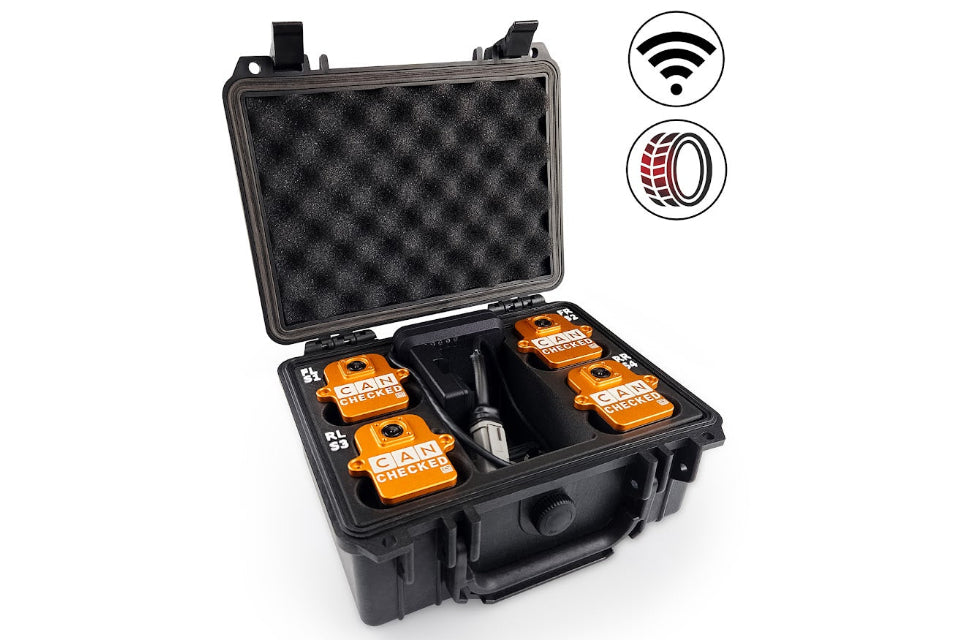

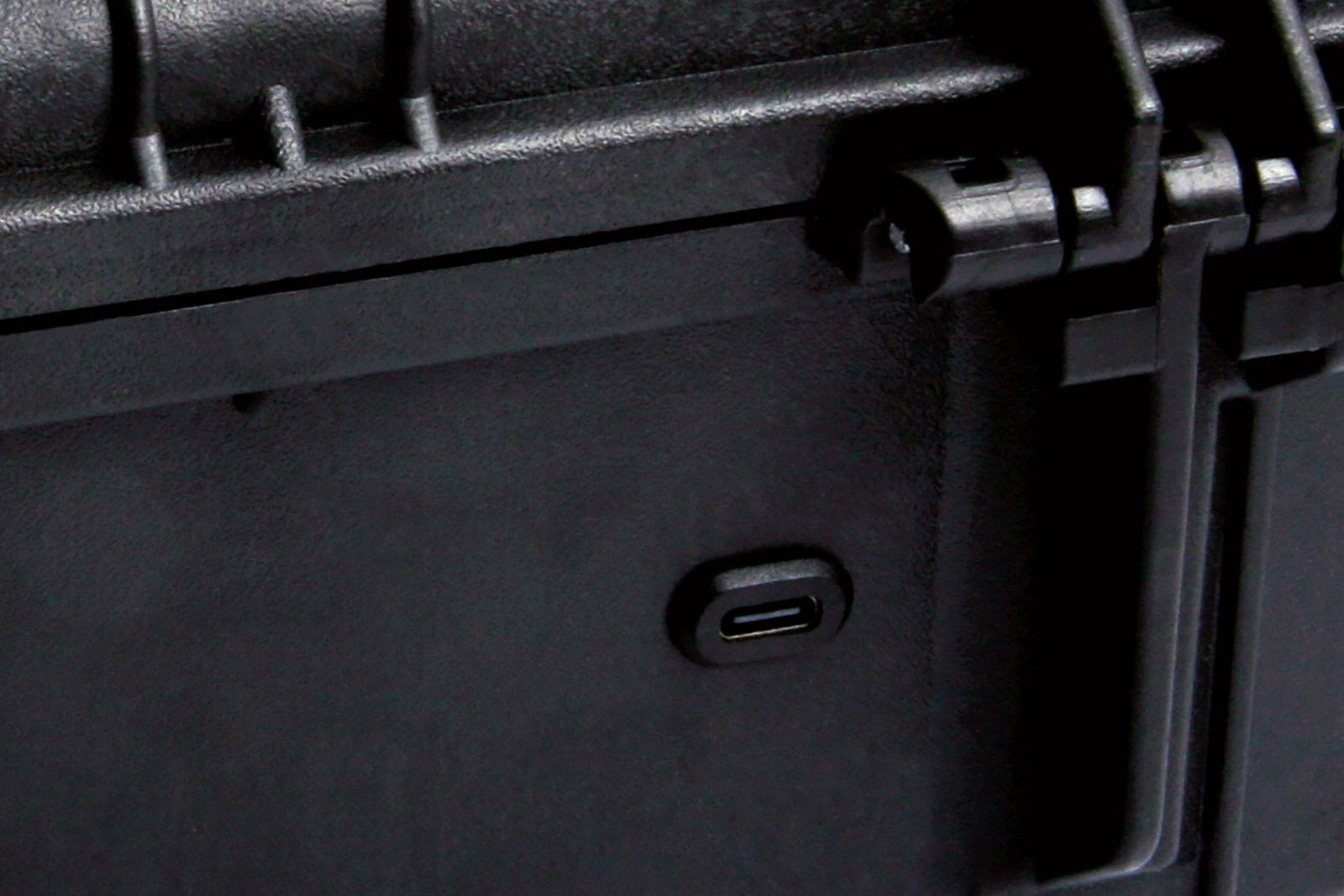

Optional Comprehensive Charging and Storage Box
- Simultaneously charges all four temperature sensors, ensuring they’re always ready for track use
- Built-in storage compartment for safe and convenient transport of the CAN receiver box
- Also available separately is the sensor protection lens kit: Available to enhance durability and protection

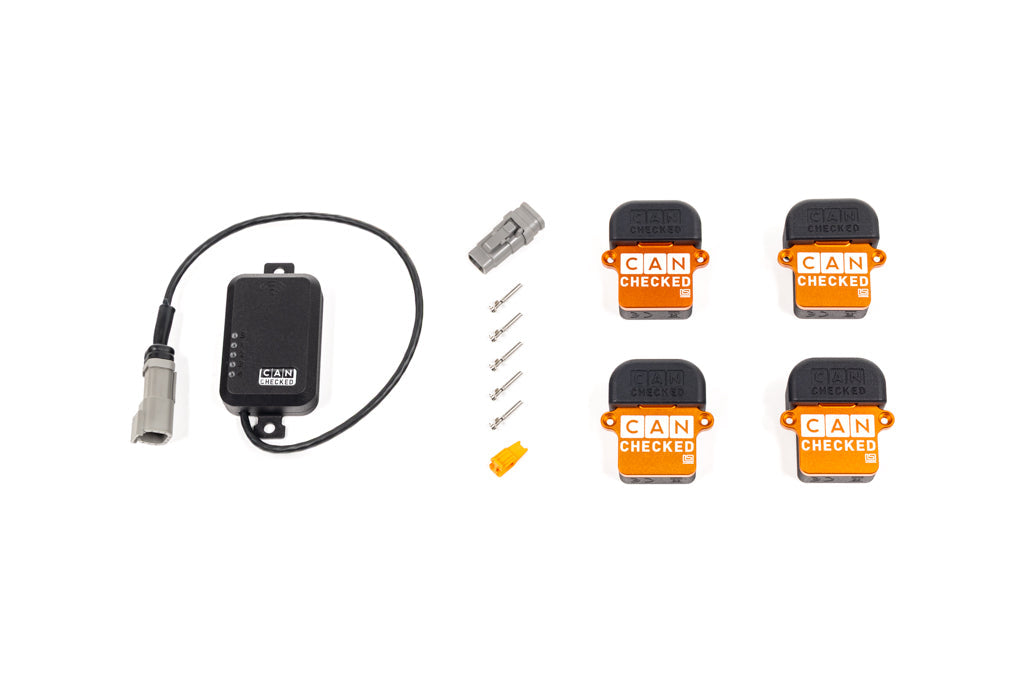

What’s Included

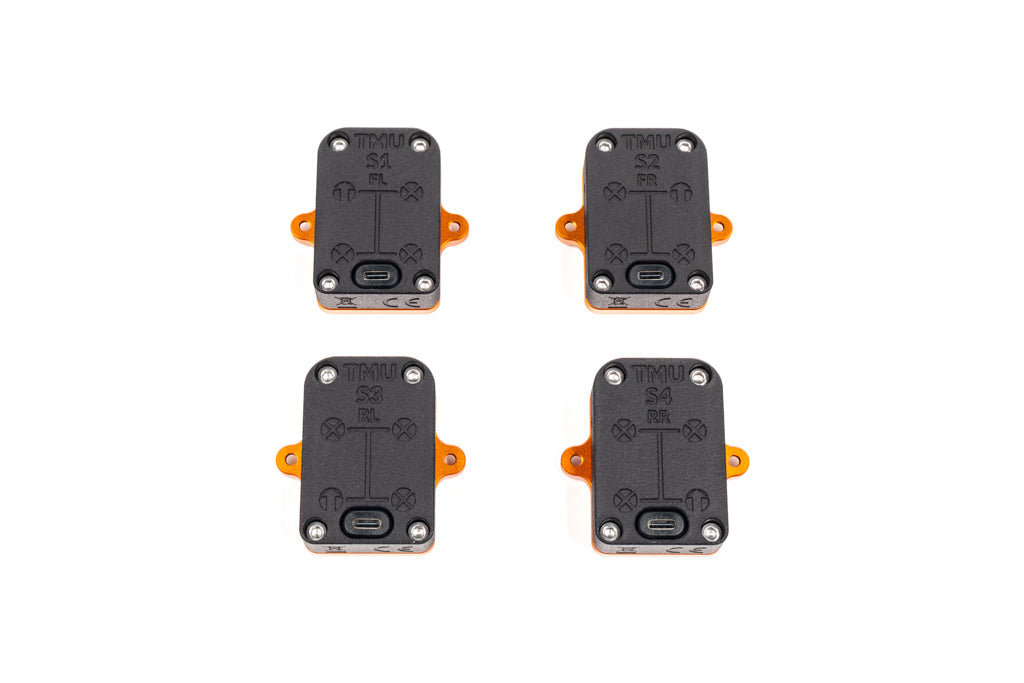

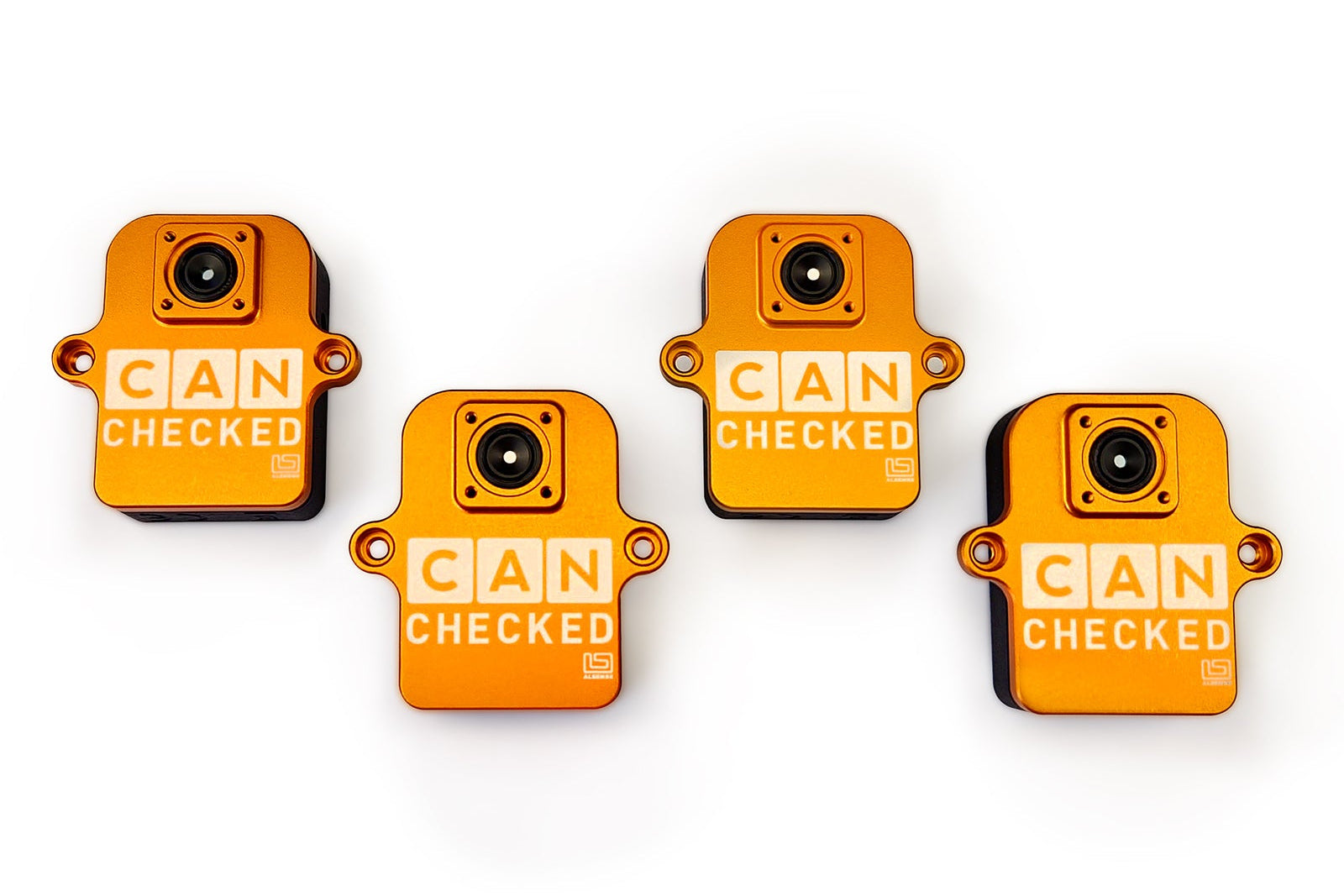

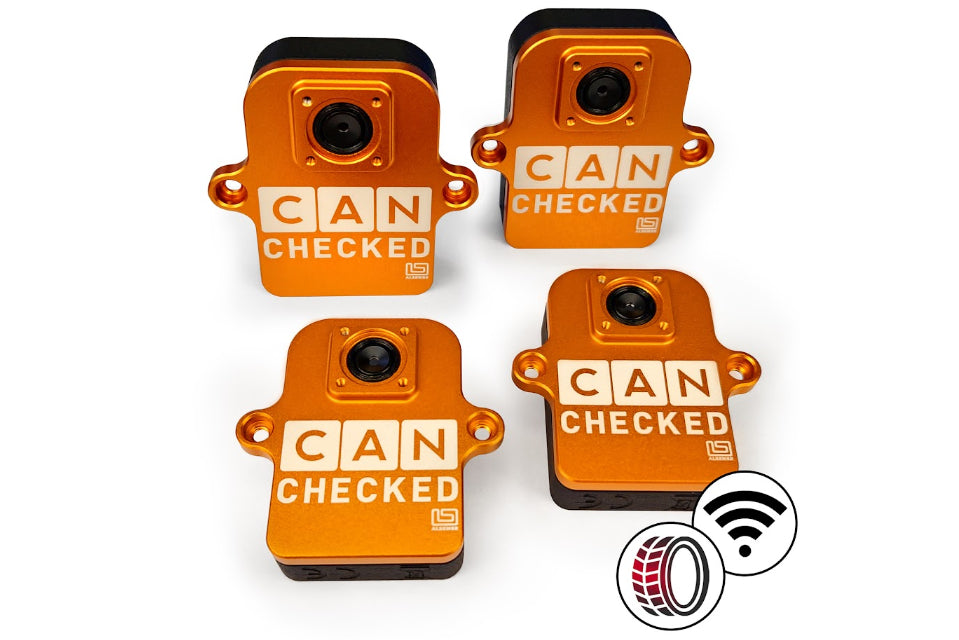

- 4x TMU01 Infrared Temperature Sensors
- 1x CAN Bus Wifi Receiver Box
- 1x Charging Box *OPTIONAL*
