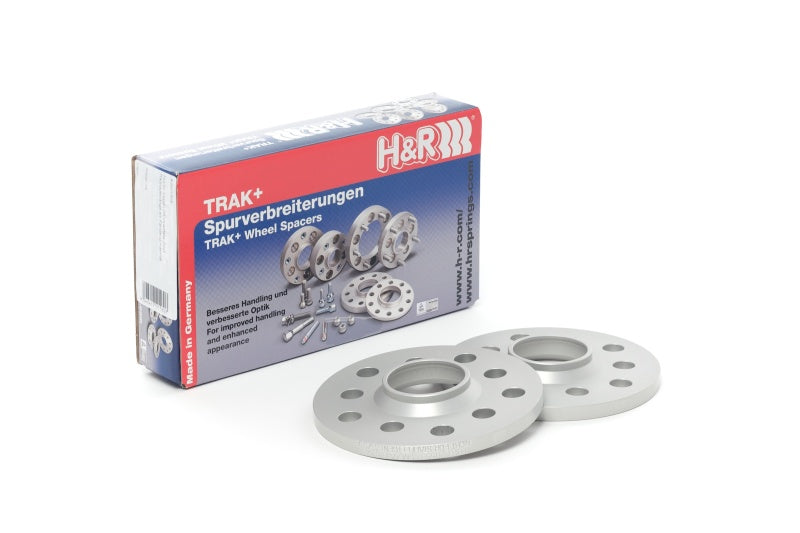

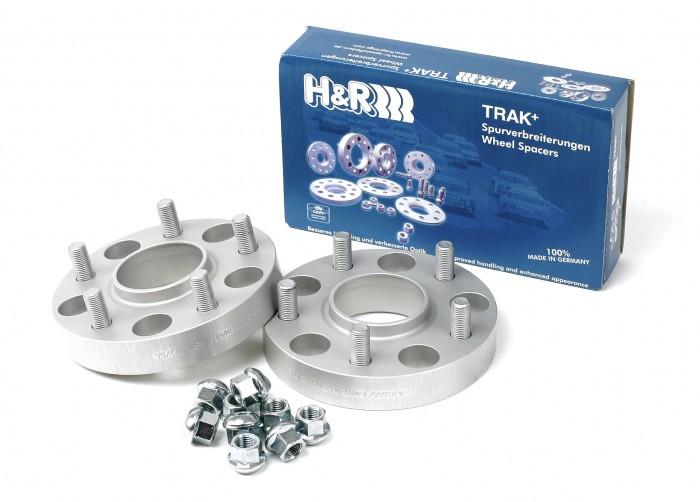

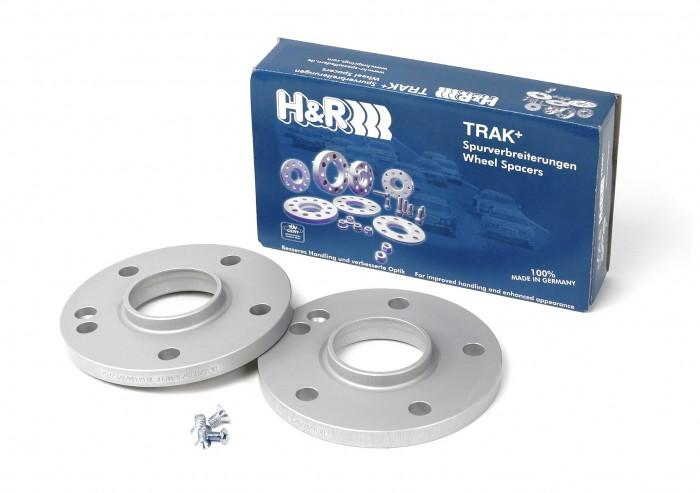

H&R Trak+ 5mm DRS Wheel Adaptor Bolt 5/114.3 Center Bore 66.2 Stud Thread 12x1.25
Only 3 item(s) left in stock
Couldn't load pickup availability
Description
Depending on model, axle and year, Nissan vehicles have different diameters in the shoulder of the studs. The following list provides notes and measurements of the shoulder studs required for installation. The wheel spacers shown in the catalog will be supplied with shoulder bolts d = 14.25. If you need d = 12.85, please add a 1 at the end of the part number. DRS Wheel Spacers - Nissan DRS wheel spacers / required DRS shoulder Vehicle Model Shoulder Front Axle/Shoulder Rear Axle SENTRA B13 GA 16 + SR20 DE large 14.25mm large 14.25 mm 100 NX B13 GA 16 + SR 20 DE large 14.25 mm large 14.25 mm 200 SX S13 CA18 T small 12.85 mm small 12.85 mm 200 SX S14 SR 20 DET large 14.25 mm small 12.85 mm 300 ZX Z32 VG 30 DTT large 14.25 mm small 12.85 mm MAXIMA J30 up to 10/91 small 12.85mm small 12.85 mm up to 12/94 large 14.25 mm small 12.85 mm from 01/95 large 14.25 mm large 14.25 mm MAXIMA A32 VQ 20 + 30DE large 14.25 mm large 14.25 mm
Installation Instructions- Moves your wheels outward so they are flush with the fender, instantly giving you the perfect stance
- Hub centric design, proprietary alloy, higher strength, lighter weight
- Extended length hardware available
- made in Germany
