Out of Stock
New

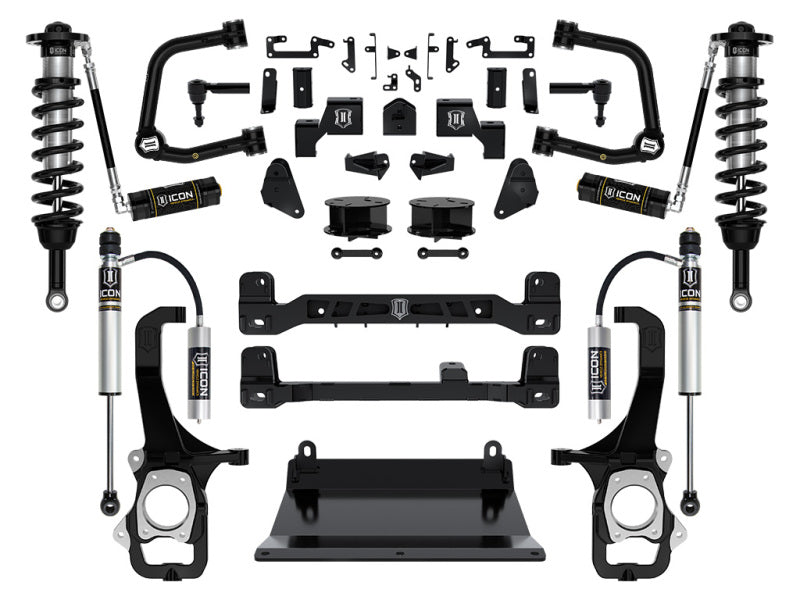

ICON 22-23 Toyota Tundra 6in Stage 3 Suspension System Tubular UCA
Regular price
$6,315.50 USD
Ask a question
Share
Couldn't load pickup availability
Description
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
Installation InstructionsInstallation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
- 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- Maintains factory track width
