MMX Performance G8X M2 / M3 / M4 4-Point Differential Lift Kit
Couldn't load pickup availability
Description
The MMX Performance G8X M2 / M3 / M4 4-Point Differential Lift Kit locates and secures the rear differential of the BMW G87 M2, G80 / G81 M3, and G82 / G83 M4 at four mounting points. It combines the billet front differential cradle, the Rear Dual Differential Mount, and two raised polyurethane rear differential bushings, fits both RWD and xDrive models, and can be installed at the factory differential height or in a reversed position for the +10mm raised position.
Like the factory mounting points, the 3-Point Differential Lift Kit uses the front cradle and a single raised bushing at the factory rear differential mount while this 4-Point kit adds the MMX Dual Differential Mount (MMR55-1606), which adds an entirely new support structure for the differential and connects at a secondary bushing location that goes unused in the factory setup. The result is a new fourth point of contact for the rear differential, which can be set at the factory height or raised +10mm to maintain proper drivetrain geometry for lowered vehicles.

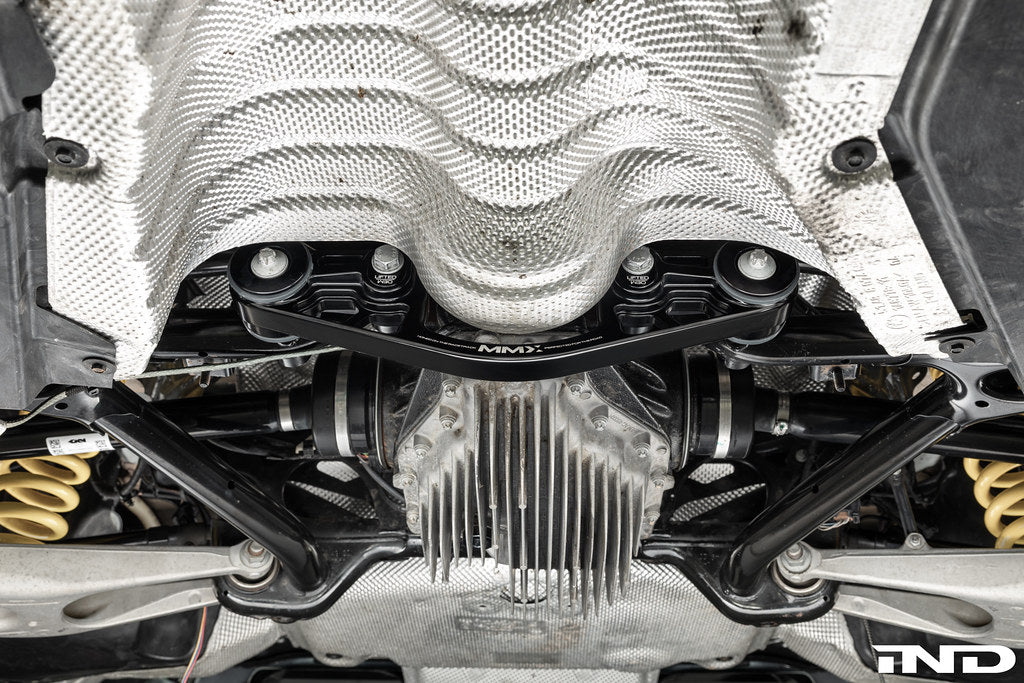

The MMX Front Differential Lift Mount / Cradle (MMR55-1604) replaces the factory front differential mount and is precision machined from 6061-T6 billet aluminum. The Rear Dual Differential Mount is CNC machined from 6061-T6 billet aluminum, is supplied with its mounting hardware, and adds an entirely new rear support structure for the differential. Both MMX Rear Differential Raised Poly Bushings (MMR55-1605) are 80A durometer polyurethane with a two-position center section that sets either the factory height or the +10mm raised height.
At OEM height, the four mounting points reduce differential movement under acceleration and changing loads without altering the rear driveline geometry. Controlling that movement also helps prevent the differential and CV seal weeping that excessive movement can cause. In the +10mm position, all four points raise the differential by 10mm. Lowering a G8X changes the operating angle of the rear driveshafts. Raising the differential by 10mm corrects that geometry, reducing heat and premature wear on the CV joints and axle shafts. The raised configuration is intended for lowered vehicles.
The 4-Point system is also the mounting base of the MMX Performance G8X M2 / M3 / M4 Complete Differential Kit, which adds the High-Capacity Baffled Differential Sump and the Rear Differential Output Shaft Heat Shield Set.
MMX G8X Differential Kit Comparison
- 3-Point: Front Differential Lift Mount / Cradle and one Rear Differential Raised Poly Bush.
- 4-Point: Adds the Dual Differential Mount and a second Rear Differential Raised Poly Bush.
- Complete: Adds the High-Capacity Baffled Differential Sump and the Output Shaft Heat Shield Set to the 4-Point system.
Product Details
- Four-point differential mounting: front cradle, dual differential mount, and two rear differential bushes

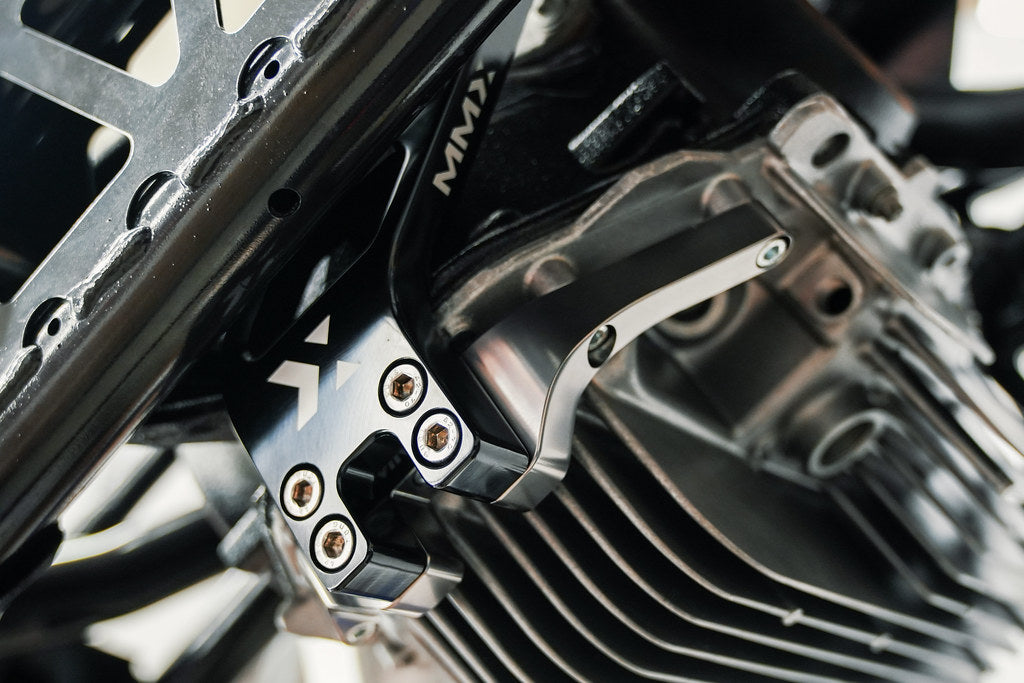

- Dual Differential Mount uses the factory secondary bush mounting location
- Front cradle and dual mount machined from 6061-T6 billet aluminum
- 80A durometer grey polyurethane rear differential bushes
- Installs at OEM differential height or +10mm raised
- Reduces differential movement under normal and increased torque loads
- +10mm raised position corrects driveshaft geometry on lowered vehicles
- Direct fit with no modification required
- Fits RWD and xDrive models
- SKU: MMR55-0002

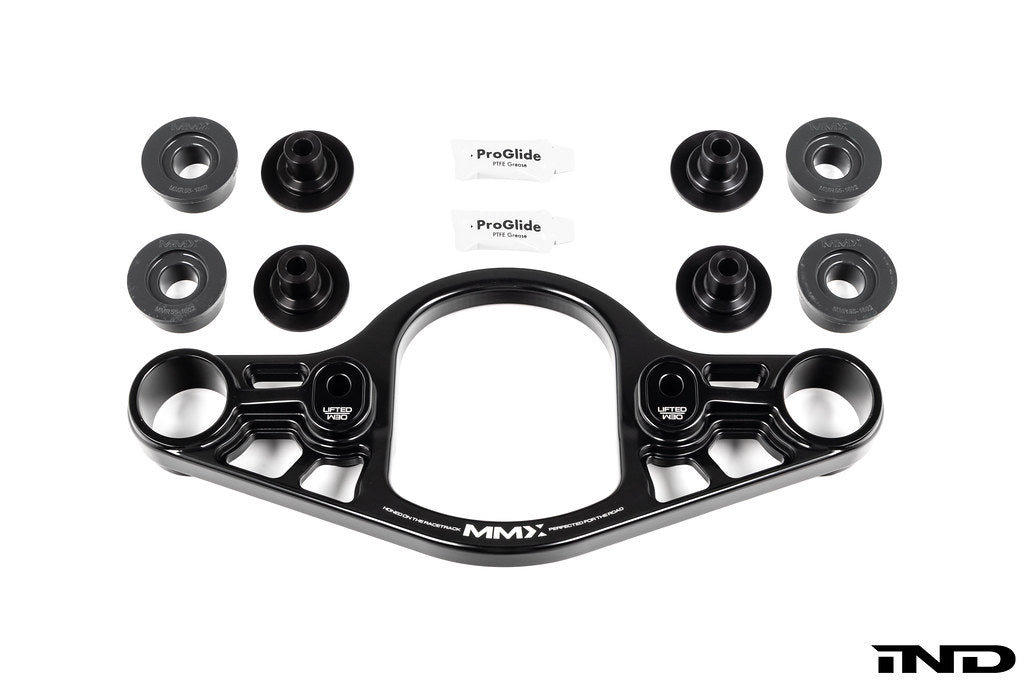

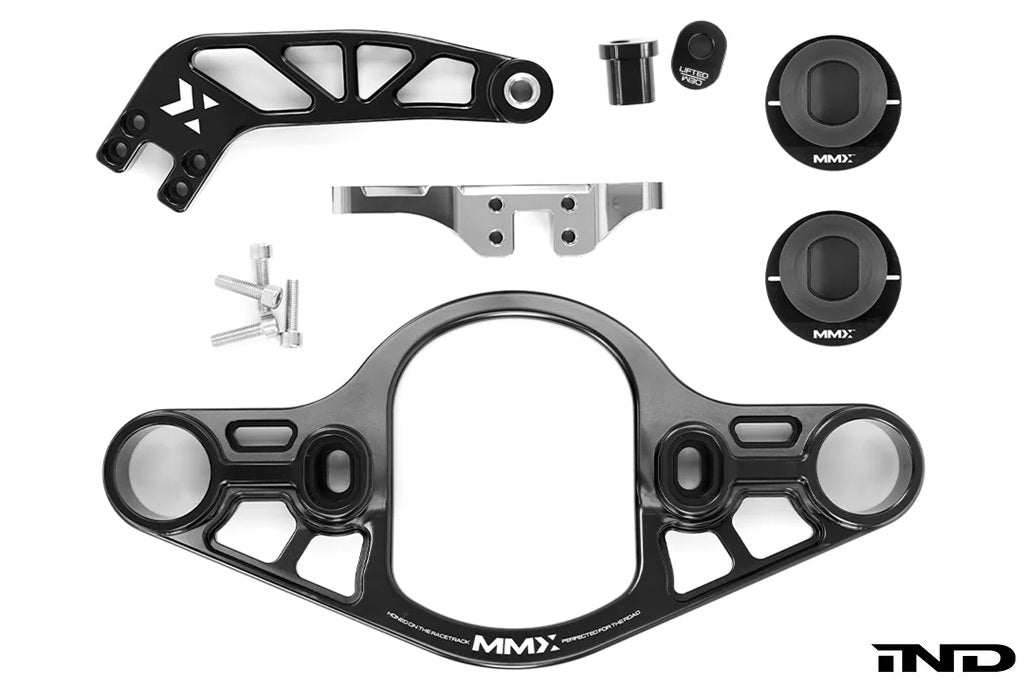

What's in the Box
- 1 x MMX Front Differential Lift Mount / Cradle (MMR55-1604), replaces the factory front differential mount

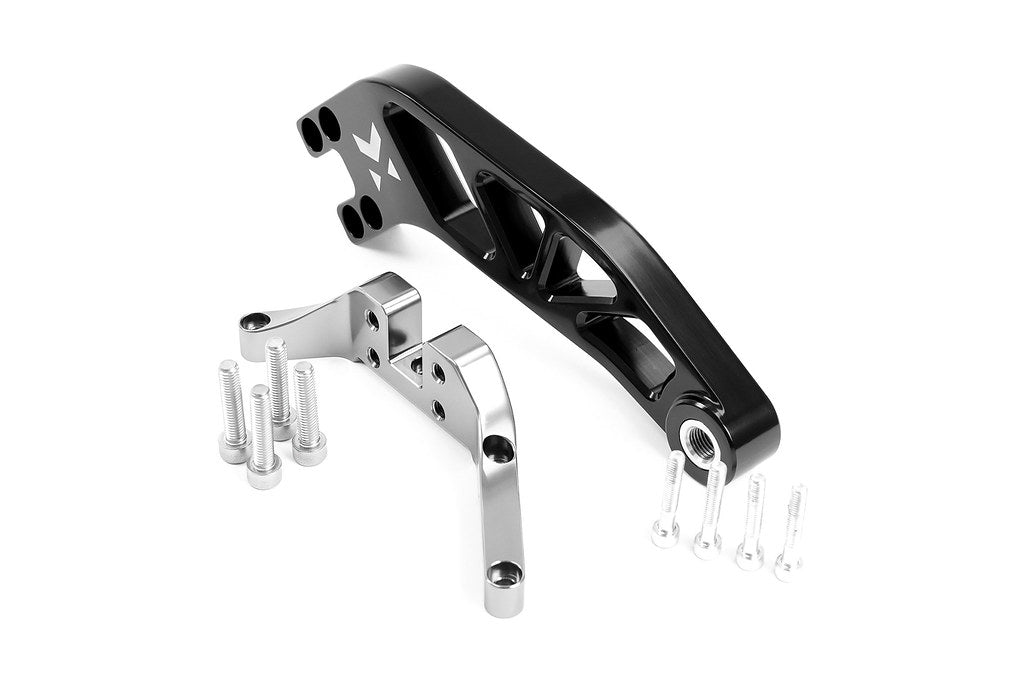

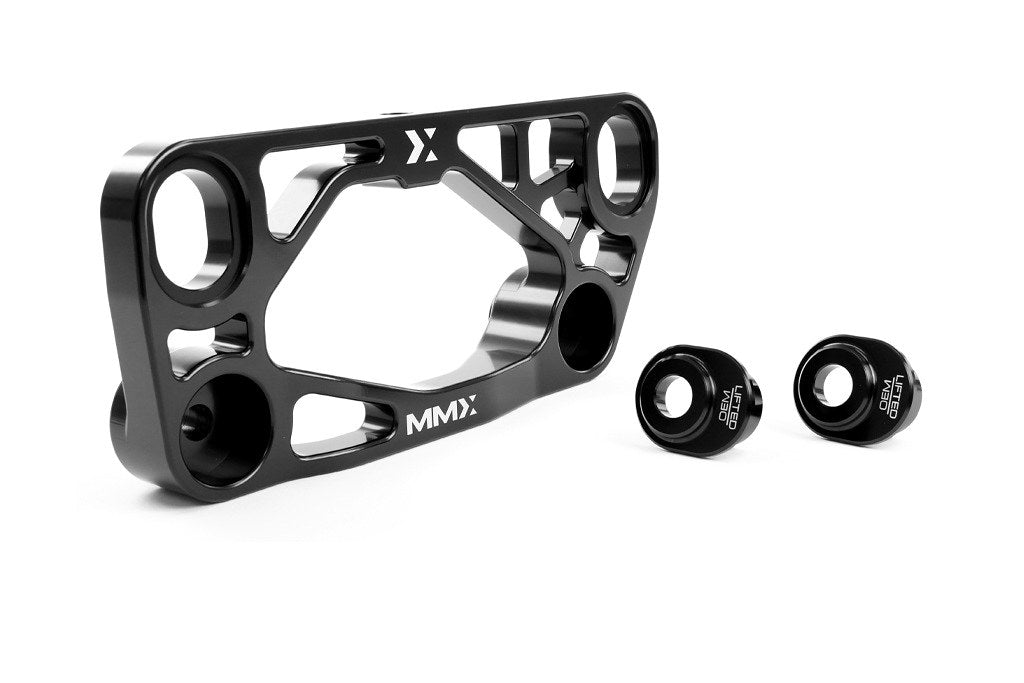

- 1 x MMX Dual Differential Mount (MMR55-1606), adds support at the factory secondary bush location, mounting hardware included

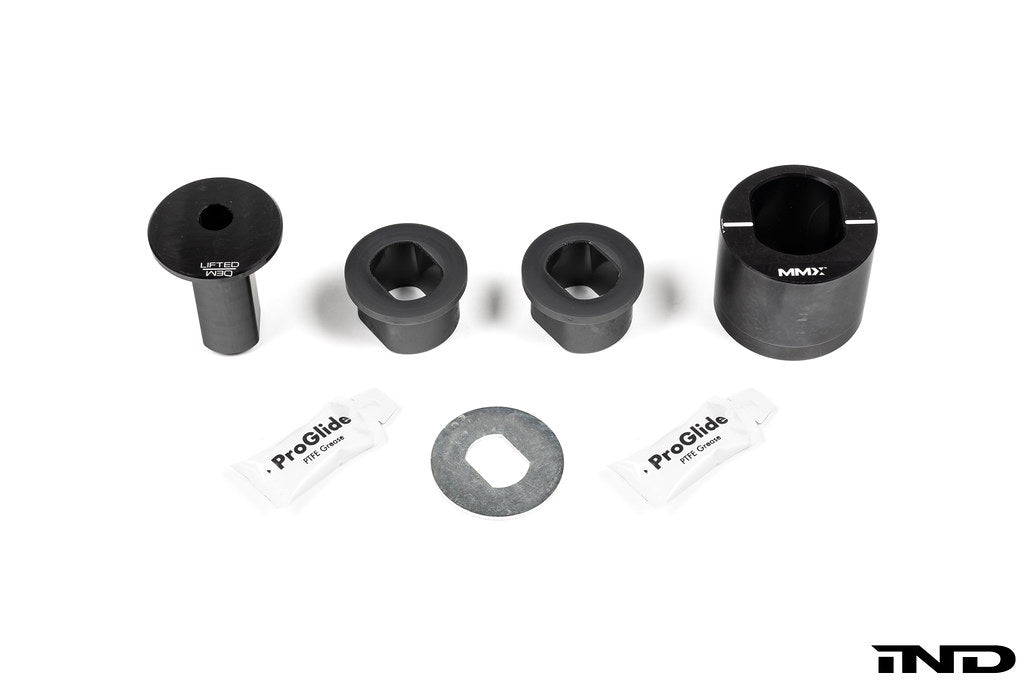

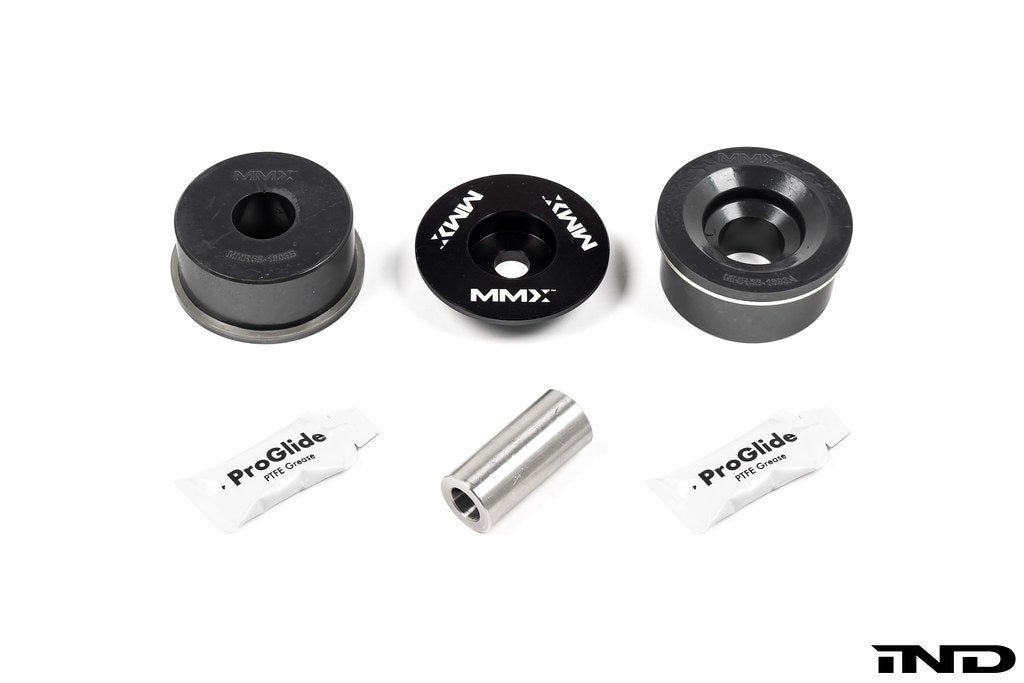

- 2 x MMX Rear Differential Raised Poly Bush (MMR55-1605), one replaces the factory rear differential mounting bush and one fits the dual differential mount
Notes
- Differential height is selected during installation. The front cradle and both rear bushes must be set to the same position, OEM height or +10mm raised.
